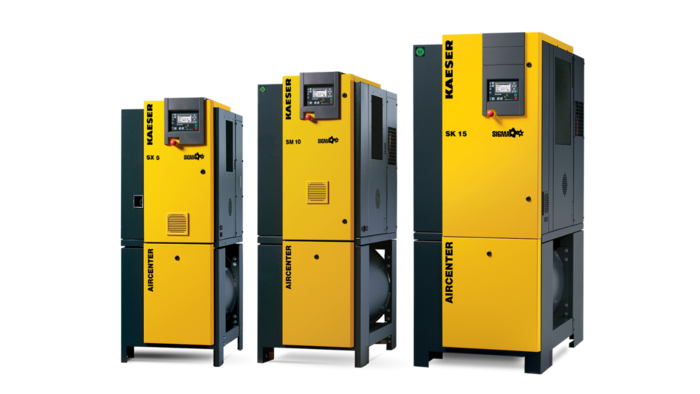

Screw Compressors with Dryers - AIRCENTER Compressed Air Station

Quality doesn't need a lot of space

AIRCENTER compressed air stations (*) by KAESER provide their owners with complete solutions in premium quality. Featuring a rotary screw compressor with SIGMA PROFILE airend technology, an add-on refrigeration dryer and a compressed air receiver, these space-saving systems provide an uncomplicated compressed air supply that is suited to a wide of applications. The SX, SM and SK series AIRCENTER feature these technical parameters:

  • Pressure: 125. 160, or 217 psig
  • Flow rate range: 9 to 90 cfm

Our premium compressed air stations require little space and are the perfect solution for smaller industrial operations.

Your advantages

  • Space-saving integrated solution:
    Compressor, refrigerated dryer and air receiver tank in one quiet, air compressor package.
  • Protection from corrosion damage:
    Thanks to the integrated refrigerated dryer, the system delivers high air quality and protects your equipment from corrosion damage.
  • Fast installation:
    Simply connect to the power supply and compressed air distribution network—no need to worry about major piping or installation work.

* This dryer series contains fluorinated greenhouse gases. All models contain refrigerant R-513A (GWP 631).

Low life cycle costs
Life-cycle costs

Our comprehensive approach to life cycle cost management: Superior efficiency, easy operation, service-friendliness, and a global service and consulting network with fast response times.



Our AIRCENTER premium packages in detail

Performance comparison of all AIRCENTER options
Series Power range (hp)  Flow rate (cfm)  Pressure (psig)  Footprint (sq. ft.)
SX 3 – 7.5 AIRCENTER 3 – 7.5 9 - 29 115/160/217 7
SM 7.5 - 15 AIRCENTER 7.5 - 15 19 - 57 115/160/217 8
SFC 8 AIRCENTER (with speed-controlled motor) 10 31 - 55 115/160/217 8
SK 15 - 20 AIRCENTER 15 – 20 46 - 89 115/160/217 11
SFC 11 - 15 AIRCENTER  (with speed-controlled motor) 15 – 20 48 - 103 115/160/217 11

All AIRCENTERS come standard with SIGMA CONTROL 2

Find the right compressor

Save energy and costs by selecting a compressor with just the right amount of power to suit your needs. Ask us – we‘re happy to help you select the right equipment.

AIRCENTER SX – Equipment

Complete unit

SX AIRCENTER – Straightforward servicing
  • Ready-to-run
  • Fully automatic
  • Super silenced
  • Vibration-dampened
  • All panels powder-coated
  • For ambient temperatures up to +115 °F
  • Easy access to all service points thanks to removable left cover

Electric motor

  • Premium Efficiency IE3
  • Premium quality German-made motor
  • IP 54

Rotary screw airend

SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.

Efficient cooling

  • Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
  • Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
  • Pressure relief valve
  • Minimum pressure check valve
  • Thermostatic valve and fluid filter in coolant circuit
  • Fluid / compressed air combination cooler

Refrigerated dryer (with T version)

  • With electronically-controlled condensate drain
  • Refrigerant compressor with energy-saving, cycling shut-down feature
  • Linked to operational status of the compressor when inactive
  • Alternatively, continuous operation can be selected on site
  • Contains fluorinated greenhouse gas R-513A

Electrical components

  • Control cabinet to IP 54
  • Switching cabinet ventilation
  • Automatic star-delta starter
  • Overload relays
  • Control transformer

SIGMA CONTROL 2

SIGMA CONTROL 2 compressor controller
  • "Traffic-light" LED indicators show operational status at a glance
  • Easy-to-read display
  • 30 selectable languages
  • Soft-touch icon buttons
  • Fully-automatic monitoring and control
  • Dual, Quadro, Vario and Continuous control modes available as standard
  • Interfaces: Ethernet
  • Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
  • SD card slot for data logging and updates
  • RFID reader
  • Web server
AIRCENTER SM – Equipment

Complete unit

The SM AIRCENTER is a complete compressed air station.
  • Ready-to-run
  • Fully automatic
  • Super silenced
  • Vibration-damped
  • All panels powder-coated
  • For ambient temperatures up to 113 °F

Electric motor

  • Premium Efficiency IE3 / Super Premium Efficiency IE4
  • Premium quality German-made motor
  • IP 54

Rotary screw airend

  • Single stage with cooling fluid injection for optimal rotor cooling
  • SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.

Refrigerated dryers

  • Separate housing for great reliability
  • With electronically-controlled condensate drain
  • Refrigerant compressor with energy-saving, cycling shut-down feature
  • Linked to operational status of the compressor when inactive
  • Alternatively, continuous operation can be selected on site
  • Contains fluorinated greenhouse gas R-513A

Efficient cooling

  • Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
  • Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
  • Pressure relief valve
  • Minimum pressure check valve
  • Thermostatic valve and fluid filter in coolant circuit
  • Fluid / compressed air combination cooler

Electrical components

  • Control cabinet to IP 54
  • Switching cabinet ventilation
  • Automatic star-delta starter
  • Overload relays
  • Control transformer

SIGMA CONTROL 2

SIGMA CONTROL 2 compressor controller
  • Traffic-light LEDs for at-a-glance operational status
  • Easy-to-read display
  • 30 selectable languages
  • Soft-touch icon buttons
  • Fully-automatic monitoring and control
  • Dual, Quadro, Vario and Continuous control modes available as standard
  • Interfaces: Ethernet
  • Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
  • SD card slot for data logging and updates
  • RFID reader
  • Web server
AIRCENTER SK – Equipment

Complete unit

AIRCENTER SK – removable enclosure cover
  • Ready-to-run
  • Fully automatic
  • Super silenced
  • Vibration-damped
  • All panels powder-coated
  • For ambient temperatures up to +113 °F
  • Easy access to all service points thanks to removable left cover

Electric motor

  • Premium Efficiency IE3
  • Premium quality German-made motor
  • IP 54

Rotary screw airend

  • Single stage with cooling fluid injection for optimal rotor cooling
  • SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.

Efficient cooling

  • Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
  • Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
  • Pressure relief valve
  • Minimum pressure check valve
  • Thermostatic valve and fluid filter in coolant circuit
  • Fluid / compressed air combination cooler

Refrigerated dryer (with T version)

  • With electronically-controlled condensate drain
  • Refrigerant compressor with energy-saving, cycling shut-down feature
  • Linked to operational status of the compressor when inactive
  • Alternatively, continuous operation can be selected on site
  • Contains fluorinated greenhouse gas R-513A

Electrical components

  • Control cabinet to IP 54
  • Switching cabinet ventilation
  • Automatic star-delta starter
  • Overload relays
  • Control transformer

SIGMA CONTROL 2

SIGMA CONTROL 2 compressor controller
  • "Traffic-light" LED indicators show operational status at a glance
  • Easy-to-read display
  • 30 selectable languages
  • Soft-touch icon buttons
  • Fully-automatic monitoring and control
  • Dual, Quadro, Vario and Continuous control modes available as standard
  • Interfaces: Ethernet
  • Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
  • SD card slot for data logging and updates
  • RFID reader
  • Web server
  • SK rotary screw compressors are optionally available with SIGMA CONTROL BASIC
Technical specifications AIRCENTER SX 3 - 7.5
ModelAIRCENTER SX 3 AIRCENTER SX 4 AIRCENTER SX 5
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 12 9 16 13 9 21 17 13
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 3 4 5
Refrigerated dryerABT 4 ABT 4 ABT 8
Receiver volume gal. 52.8 52.8 52.8
Dimensions
W x D x H in
23 x 43 x 62 23 x 43 x 62 23 x 43 x 62
Compressed air connection¾ NPT ¾ NPT ¾ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 628 628 639
ModelAIRCENTER SX 3 AIRCENTER SX 4 AIRCENTER SX 5
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 12 9 16 13 9 21 17 13
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 3 4 5
Refrigerated dryerABT 4 ABT 4 ABT 8
Receiver volume gal. 52.8 52.8 52.8
Dimensions
W x D x H in
23 x 43 x 62 23 x 43 x 62 23 x 43 x 62
Compressed air connection¾ NPT ¾ NPT ¾ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 628 628 639

ModelAIRCENTER SX 7.5
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 28 24 19
Max. positive pressure psi 125 160 217
Nominal motor output hp 7.5
Refrigerated dryerABT 4
Receiver volume gal. 52.8
Dimensions
W x D x H in
23 x 43 x 62
Compressed air connection¾ NPT
Sound pressure level dB(A) 66
Weight lb 661
ModelAIRCENTER SX 7.5
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 28 24 19
Max. positive pressure psi 125 160 217
Nominal motor output hp 7.5
Refrigerated dryerABT 4
Receiver volume gal. 52.8
Dimensions
W x D x H in
23 x 43 x 62
Compressed air connection¾ NPT
Sound pressure level dB(A) 66
Weight lb 661

Add-on refrigerated dryer

ModelABT 4 ABT 8
Power consumption0.3 0.5
Pressure dew point °F 37 37
RefrigerantR-513A R-513A
Global warming potential 631 631
Refrigerant volume lb 0.38 0.44
Refrigerant mass as CO2 equivalent t 0.1 0.1
Hermetic refrigeration circuit
ModelABT 4 ABT 8
Power consumption0.3 0.5
Pressure dew point °F 37 37
RefrigerantR-513A R-513A
Global warming potential 631 631
Refrigerant volume lb 0.38 0.44
Refrigerant mass as CO2 equivalent t 0.1 0.1
Hermetic refrigeration circuit

Technical specifications AIRCENTER Simplex SX

T version

ModelSX 3 AIRCENTER SX 4 AIRCENTER SX 5 AIRCENTER
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 12 9 16 13 9 21 17 13
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 3 4 5
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64 85 x 29 x 64 85 x 29 x 64
Compressed air connection½ NPT ½ NPT ½ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 1,042 1,042 1,053
ModelSX 3 AIRCENTER SX 4 AIRCENTER SX 5 AIRCENTER
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 12 9 16 13 9 21 17 13
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 3 4 5
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64 85 x 29 x 64 85 x 29 x 64
Compressed air connection½ NPT ½ NPT ½ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 1,042 1,042 1,053

ModelSX 7.5 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 28 24 19
Max. positive pressure psi 125 160 217
Nominal motor output hp 7.5
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64
Compressed air connection½ NPT
Sound pressure level dB(A) 66
Weight lb 1,075
ModelSX 7.5 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 28 24 19
Max. positive pressure psi 125 160 217
Nominal motor output hp 7.5
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64
Compressed air connection½ NPT
Sound pressure level dB(A) 66
Weight lb 1,075

Technical specifications AIRCENTER Duplex SX

T version

ModelSX 3 AIRCENTER SX 4 AIRCENTER SX 5 AIRCENTER
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 24 18 32 26 18 42 34 26
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 6 8 10
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64 85 x 29 x 64 85 x 29 x 64
Compressed air connection½ NPT ½ NPT ½ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 1,266 1,266 1,293
ModelSX 3 AIRCENTER SX 4 AIRCENTER SX 5 AIRCENTER
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 24 18 32 26 18 42 34 26
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 6 8 10
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64 85 x 29 x 64 85 x 29 x 64
Compressed air connection½ NPT ½ NPT ½ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 1,266 1,266 1,293

ModelSX 7.5 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 56 48 38
Max. positive pressure psi 125 160 217
Nominal motor output hp 15
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64
Compressed air connection½ NPT
Sound pressure level dB(A) 66
Weight lb 1,362
ModelSX 7.5 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 56 48 38
Max. positive pressure psi 125 160 217
Nominal motor output hp 15
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64
Compressed air connection½ NPT
Sound pressure level dB(A) 66
Weight lb 1,362

Technical specifications AIRCENTER Duplex SX

T version

ModelSX 3 AIRCENTER SX 4 AIRCENTER SX 5 AIRCENTER
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 24 18 32 26 18 42 34 26
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 6 8 10
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64 85 x 29 x 64 85 x 29 x 64
Compressed air connection½ NPT ½ NPT ½ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 1,351 1,351 1,373
ModelSX 3 AIRCENTER SX 4 AIRCENTER SX 5 AIRCENTER
Working pressure psi 125 160 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 24 18 32 26 18 42 34 26
Max. positive pressure psi 125 160 125 160 217 125 160 217
Nominal motor output hp 6 8 10
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64 85 x 29 x 64 85 x 29 x 64
Compressed air connection½ NPT ½ NPT ½ NPT
Sound pressure level dB(A) 61 62 63
Weight lb 1,351 1,351 1,373

ModelSX 7.5 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 56 48 38
Max. positive pressure psi 125 160 217
Nominal motor output hp 15
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64
Compressed air connection½ NPT
Sound pressure level dB(A) 66
Weight lb 1,417
ModelSX 7.5 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 56 48 38
Max. positive pressure psi 125 160 217
Nominal motor output hp 15
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 64
Compressed air connection½ NPT
Sound pressure level dB(A) 66
Weight lb 1,417

Technical specifications AIRCENTER SM 7.5 - 15
ModelAIRCENTER SM 7.5 AIRCENTER SM 10 AIRCENTER SM 15
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 32 26 19 46 37 28 55 46 36
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 7.5 10 15
Refrigerated dryerABT 15 ABT 15 ABT 15
Receiver volume gal. 71.3 71.3 71.3
Dimensions
W x D x H in
25 x 48 x 68 25 x 48 x 68 25 x 48 x 68
Compressed air connection¾ NPT ¾ NPT ¾ NPT
Sound pressure level dB(A) 65 67 68
Weight lb 926 970 970
ModelAIRCENTER SM 7.5 AIRCENTER SM 10 AIRCENTER SM 15
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 32 26 19 46 37 28 55 46 36
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 7.5 10 15
Refrigerated dryerABT 15 ABT 15 ABT 15
Receiver volume gal. 71.3 71.3 71.3
Dimensions
W x D x H in
25 x 48 x 68 25 x 48 x 68 25 x 48 x 68
Compressed air connection¾ NPT ¾ NPT ¾ NPT
Sound pressure level dB(A) 65 67 68
Weight lb 926 970 970

Add-on refrigerated dryer

ModelABT 15
Power consumption0.5
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 0.77
Refrigerant mass as CO2 equivalent t 0.2
Hermetic refrigeration circuit
ModelABT 15
Power consumption0.5
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 0.77
Refrigerant mass as CO2 equivalent t 0.2
Hermetic refrigeration circuit

Technical specifications AIRCENTER Duplex SM

T version

ModelSM 7.5 AIRCENTER SM 10 AIRCENTER SM 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 65 53 39 92 74 55 111 92 71
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 15 20 30
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 68 85 x 36 x 68 85 x 36 x 68
Compressed air connection1 NPT 1 NPT 1 NPT
Sound pressure level dB(A) 66 67 68
Weight lb 1,553 1,593 1,653
ModelSM 7.5 AIRCENTER SM 10 AIRCENTER SM 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 65 53 39 92 74 55 111 92 71
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 15 20 30
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 68 85 x 36 x 68 85 x 36 x 68
Compressed air connection1 NPT 1 NPT 1 NPT
Sound pressure level dB(A) 66 67 68
Weight lb 1,553 1,593 1,653

Technical specifications AIRCENTER Duplex SM

T version

ModelSM 7.5 AIRCENTER SM 10 AIRCENTER SM 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 65 53 39 92 74 55 111 92 71
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 15 20 30
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 68 85 x 36 x 68 85 x 36 x 68
Compressed air connection1 NPT 1 NPT 1 NPT
Sound pressure level dB(A) 66 67 68
Weight lb 1,688 1,726 2,307
ModelSM 7.5 AIRCENTER SM 10 AIRCENTER SM 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 65 53 39 92 74 55 111 92 71
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 15 20 30
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 68 85 x 36 x 68 85 x 36 x 68
Compressed air connection1 NPT 1 NPT 1 NPT
Sound pressure level dB(A) 66 67 68
Weight lb 1,688 1,726 2,307

Technical specifications AIRCENTER Simplex SFC

T-SFC version

ModelSFC 8 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 12 - 48 13 - 41 13 - 31
Max. positive pressure psi 125 160 217
Nominal motor output hp 10
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 69
Compressed air connection1 NPT
Sound pressure level dB(A) 68
Weight lb 1,173
ModelSFC 8 AIRCENTER
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 12 - 48 13 - 41 13 - 31
Max. positive pressure psi 125 160 217
Nominal motor output hp 10
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 69
Compressed air connection1 NPT
Sound pressure level dB(A) 68
Weight lb 1,173

Technical specifications AIRCENTER Simplex SM

T version

ModelSM 7.5 AIRCENTER SM 10 AIRCENTER SM 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 33 27 19 46 37 28 55 46 36
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 7.5 10 15
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 69 85 x 29 x 69 85 x 29 x 69
Compressed air connection1 NPT 1 NPT 1 NPT
Sound pressure level dB(A) 66 67 68
Weight lb 1,173 1,193 1,223
ModelSM 7.5 AIRCENTER SM 10 AIRCENTER SM 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 33 27 19 46 37 28 55 46 36
Max. positive pressure psi 125 160 217 125 160 217 125 160 217
Nominal motor output hp 7.5 10 15
Refrigerated dryer
Dimensions
W x D x H in
85 x 29 x 69 85 x 29 x 69 85 x 29 x 69
Compressed air connection1 NPT 1 NPT 1 NPT
Sound pressure level dB(A) 66 67 68
Weight lb 1,173 1,193 1,223

Technical specifications AIRCENTER SFC
ModelAIRCENTER SFC 8
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 12 - 48 12 - 41 13 - 31
Max. positive pressure psi 125 160 217
Nominal motor output hp 10
Refrigerated dryerABT 15
Receiver volume gal. 71.3
Dimensions
W x D x H in
25 x 48 x 68
Compressed air connection¾ NPT
Sound pressure level dB(A) 68
Weight lb 992
ModelAIRCENTER SFC 8
Working pressure psi 125 160 217
Flow rate complete system at working pressure acfm 12 - 48 12 - 41 13 - 31
Max. positive pressure psi 125 160 217
Nominal motor output hp 10
Refrigerated dryerABT 15
Receiver volume gal. 71.3
Dimensions
W x D x H in
25 x 48 x 68
Compressed air connection¾ NPT
Sound pressure level dB(A) 68
Weight lb 992

Add-on refrigerated dryer

ModelABT 15
Power consumption0.5
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 0.77
Refrigerant mass as CO2 equivalent t 0.2
Hermetic refrigeration circuit
ModelABT 15
Power consumption0.5
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 0.77
Refrigerant mass as CO2 equivalent t 0.2
Hermetic refrigeration circuit

Technical specifications AIRCENTER SK 15 - 20
ModelAIRCENTER SK 15 AIRCENTER SK 20
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 71 59 46 88 77 63
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryerABT 25 ABT 25
Receiver volume gal. 92.5 92.5
Dimensions
W x D x H in
30 x 53 x 74 30 x 53 x 74
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 1,274 1,292
ModelAIRCENTER SK 15 AIRCENTER SK 20
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 71 59 46 88 77 63
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryerABT 25 ABT 25
Receiver volume gal. 92.5 92.5
Dimensions
W x D x H in
30 x 53 x 74 30 x 53 x 74
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 1,274 1,292

Add-on refrigerated dryer

ModelABT 25
Power consumption0.6
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 1.37
Refrigerant mass as CO2 equivalent t 0.4
Hermetic refrigeration circuit
ModelABT 25
Power consumption0.6
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 1.37
Refrigerant mass as CO2 equivalent t 0.4
Hermetic refrigeration circuit

Technical specifications AIRCENTER SFC
ModelAIRCENTER SFC 11 AIRCENTER SFC 15
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 22 - 72 22 - 62 19 - 48 28 - 95 29 - 83 28 - 68
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryerABT 25 ABT 25
Receiver volume gal. 92.5 92.5
Dimensions
W x D x H in
30 x 53 x 74 30 x 53 x 74
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 68 69
Weight lb 1,312 1,329
ModelAIRCENTER SFC 11 AIRCENTER SFC 15
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 22 - 72 22 - 62 19 - 48 28 - 95 29 - 83 28 - 68
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryerABT 25 ABT 25
Receiver volume gal. 92.5 92.5
Dimensions
W x D x H in
30 x 53 x 74 30 x 53 x 74
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 68 69
Weight lb 1,312 1,329

Add-on refrigerated dryer

ModelABT 25
Power consumption0.6
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 1.37
Refrigerant mass as CO2 equivalent t 0.4
Hermetic refrigeration circuit
ModelABT 25
Power consumption0.6
Pressure dew point °F 37
RefrigerantR-513A
Global warming potential 631
Refrigerant volume lb 1.37
Refrigerant mass as CO2 equivalent t 0.4
Hermetic refrigeration circuit

Technical specifications AIRCENTER Simplex SK

T version

ModelSK 15 AIRCENTER SK 20 AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 71 59 46 88 77 63
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 76 85 x 36 x 76
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 1,470 1,513
ModelSK 15 AIRCENTER SK 20 AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 71 59 46 88 77 63
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 76 85 x 36 x 76
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 1,470 1,513

Technical specifications AIRCENTER Simplex SFC

T-SFC version

ModelSFC 11 AIRCENTER SFC 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 22 - 72 22 - 62 19 - 48 28 - 95 29 - 83 28 - 68
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 75 85 x 36 x 75
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 68 69
Weight lb 1,470 1,543
ModelSFC 11 AIRCENTER SFC 15 AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 22 - 72 22 - 62 19 - 48 28 - 95 29 - 83 28 - 68
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 15 20
Refrigerated dryer
Dimensions
W x D x H in
85 x 36 x 75 85 x 36 x 75
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 68 69
Weight lb 1,470 1,543

Technical specifications AIRCENTER Duplex SK

T version

ModelSK 15 AIRCENTER SK 20 AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 142 118 92 176 154 126
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 30 40
Refrigerated dryer
Dimensions
W x D x H in
88 x 79 x 75 88 x 79 x 75
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 2,992 3,026
ModelSK 15 AIRCENTER SK 20 AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 142 118 92 176 154 126
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 30 40
Refrigerated dryer
Dimensions
W x D x H in
88 x 79 x 75 88 x 79 x 75
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 2,992 3,026

Technical specifications AIRCENTER Duplex SK T

T version

ModelSK 15 T AIRCENTER SK 20 T AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 142 118 92 176 154 126
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 30 40
Refrigerated dryer
Dimensions
W x D x H in
85 x 79 x 75 85 x 79 x 75
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 2,812 2,848
ModelSK 15 T AIRCENTER SK 20 T AIRCENTER
Working pressure psi 125 160 217 125 160 217
Flow rate complete system at working pressure acfm 142 118 92 176 154 126
Max. positive pressure psi 125 160 217 125 160 217
Nominal motor output hp 30 40
Refrigerated dryer
Dimensions
W x D x H in
85 x 79 x 75 85 x 79 x 75
Compressed air connection1 NPT 1 NPT
Sound pressure level dB(A) 67 68
Weight lb 2,812 2,848
