60 HP Industrial Rotary Screw Compressors

60 hp compressor - BSD 60-BSD 60T

Kaeser's 60 HP Screw Compressor Models

Standard 60 HP Air Compressor

BSD 60 - 60 hp screw compressor

Kaeser's 60 hp rotary screw compressors in the BSD and CSD series with direct drive incorporate all standard Kaeser features, such as powder-coated enclosures, premium efficiency TEFC motors, and the SIGMA PROFILE airend. These units are available with integrated dryers and/or variable speed drive options.

60 HP Air Compressors with Integrated Dryers

BSD 60T - 60 hp screw compressor with dryer

The BSD 60T is a rotary screw compressor with integrated refrigerated dryer sized for the full flow of the compressor. The dryer is located in a separate cabinet so it is not exposed to preheated air or contaminants from the compressor package.

Energy-Saving Control:

The integrated refrigerated dryer in "T” units provides high efficiency performance thanks to its energy saving control. The dryer is active only when compressed air actually needs to be dried. This approach achieves the required compressed air quality with maximum efficiency.

Eco-Drain:

The integrated refrigerated dryer also features a zero loss Eco-Drain. The advanced level-controlled condensate drain eliminates the compressed air losses associated with solenoid valve control. This saves energy and considerably enhances the reliability of the compressed air supply.

Climate-Friendly Design:

In addition to energy-saving controls, our integrated dryers feature the new R-513A refrigerant with 56% lower global warming potential than common dryer refrigerants. Combined with our advanced heat exchanger design, we need only half the refrigerant — resulting in the most climate-friendly dryer possible.




60HP Rotary Screw Compressor with Variable Speed Drive

SFC 45T - 60 hp screw compressor with variable speed drive and dryer

The SFC 45S and SFC 45 60hp rotary screw compressor is the perfect solution for smaller compressed air systems with varying air demand to achieve significant energy savings while maintaining stable pressure. KAESER SFC units are up to 25% more efficient than the competition. These units are available with an integrated dryer. Learn more about Kaeser's SFC series of compressors with variable speed drive.

power consumption vs flow rate

A variable speed screw compressor should be the most frequently loaded unit in a properly designed system. Each is optimized to deliver significantly more air with lower kW than comparable compressors.




TECHNICAL SPECIFICATIONS


60 hp Screw Compressors: BSD Series

Direct-Drive Units

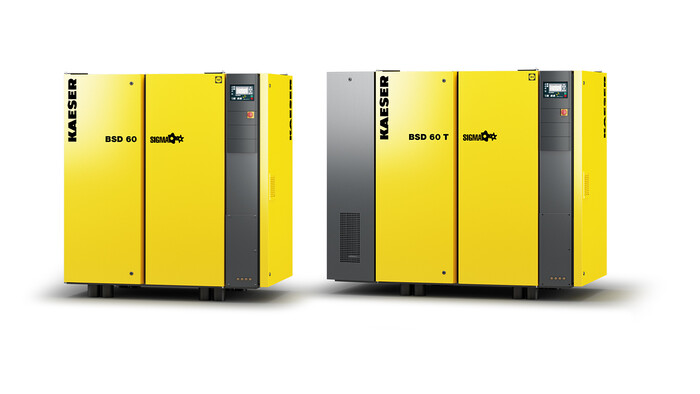

60 hp compressor - BSD 60-BSD 60T
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 175 psig 217 psig
BSD 60 289 233 187 63 x 41 x 67 2238 73
BSD 60T 78 x 41 x 67 2524

  • Generously sized doors fully swing out or are easily removable
  • SIGMA CONTROL 2 signals when PM is due
  • Easy access inlet filter requires no special tools for servicing
  • Eco-friendly fluid filter element safe for thermal disposal
  • External drive motor grease fittings
  • Double vibration isolation ensures wiring and fluid connections stay tight
  • Coolers are easily cleaned
  • Fluid fill port conveniently placed
  • Fluid level easy to check
  • Separator design allows fast, complete fluid changes
60 hp Screw Compressors: CSD Series

Direct-Drive Units

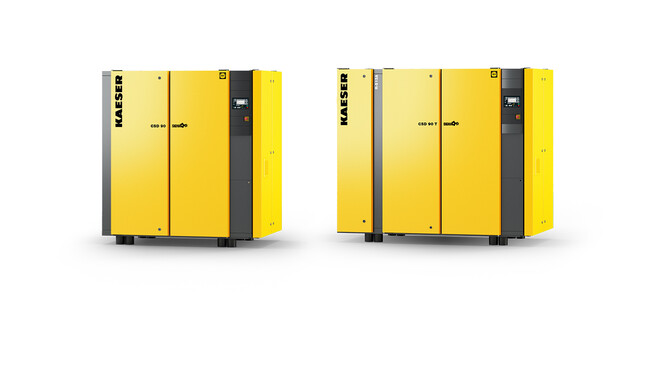

60 hp compressors - CSD 90 - CSD 90T
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 175 psig 217 psig
CSD 90 304 257 n/a 71 x 43 x 75 2954 67
CSD 90T 87 x 43 x 75 3395

  • SIGMA CONTROL 2 signals when PM is due
  • Easy access inlet air filter requires no special tools for servicing
  • Eco-friendly fluid filter element safe for thermal disposal
  • Brushless DC fan motor needs no greasing
  • Generously sized doors fully swing out or are easily removable
  • Double vibration isolation ensures wiring and fluid connections stay tight
  • Coolers are easily cleaned
  • Separator design allows fast, complete fluid changes
  • Fluid fill port conveniently placed
  • Fluid level easy to check
60 hp Screw Compressors: SFC Series

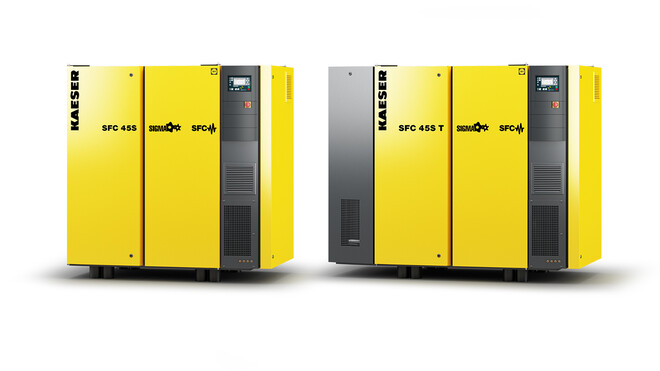

60 hp compressors with variable speed drive - SFC 45S - SFC 45ST
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 175 psig 217 psig
SFC 45S 69-276* 50-228 40-196* 66 x 41 x 67 2315 74
SFC 45ST 81 x 41 x 67 2601

* Min and max flow range

60 hp compressors with variable speed drive - SFC 45 - SFC 45T
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 175 psig 217 psig
SFC 45 69-316* 61-259 n/a 73 x 43 x 75 3020 68
SFC 45T 89 x 43 x 75 3461

* Min and max flow range




Why Choose a KAESER 60 HP Rotary Screw Compressor?

Kaeser's 60-hp rotary screw air compressors provide outstanding efficiency and reliability. Featuring an energy-saving SIGMA PROFILE airend and a SIGMA CONTROL 2 controller, these compressors are designed to meet and exceed our customers' expectations, outperforming and outlasting other compressor solutions on the market.

Service-Friendly Compressor Design

From the ground up, these compressors have been designed with the user in mind. Fewer wearing parts and using premium quality materials ensure reduced maintenance requirements, longer service intervals, and extended service life. A smarter component layout with generously sized maintenance doors simplify service and lower your operating costs.

Guaranteed Efficiency

In our comprehensive design approach, KAESER chooses the components that work together in the most energy efficient way possible. Each and every component—from inlet filter to discharge flange—has been carefully selected with performance in mind. In fact, these 60 hp compressors are more efficient than the competition. With KAESER’s superior integrated controls, we guarantee an efficient system with lower operating costs, however small or large your demand may be.

Rugged Reliability

KAESER’s screw compressors meet our rigorous “built for a lifetime” standard. Designed and built with KAESER’s generations of compressed air experience, you can rest assured that these 60 hp compressors will continue to deliver the air you need with the exceptional reliability you expect from a KAESER compressor.

SIGMA Control 2: An Intelligent Compressor Control System

SIGMA CONTROL 2 compressor controller
  • Traffic-light LEDs for at-a-glance operational status
  • Easy-to-read display with 30 selectable languages
  • Soft-touch icon buttons
  • Fully-automatic monitoring and control
  • Dual, Quadro, Vario and Mono control modes available as standard
  • Interfaces: Ethernet
  • Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
  • SD card slot for data logging and updates
  • RFID reader
  • Web server
