Compressed air treatment

Treatment components for a broad range of applications

Kaeser offers a complete range of compressed air dryers, filters and condensate drains to combat moisture, oil, and particulates to ensure a reliable supply of clean, dry air. We have the products and system expertise to design a solution to deliver the air quality you need for any application—from basic shop air to instrument air to breathing air.  Let us help you select the right mix of air treatment for your applications. In many cases, we can reduce capital, maintenance and energy costs by specifying the best options for different applications within your plant.


  • Extend equipment life by reducing wear on pneumatic tools and equipment
  • Reduce scrap caused by contaminated products or malfunctioning equipment
  • Reduce maintenance costs and extend maintenance intervals
  • Maintain energy efficiency by not over-treating compressed air

An overview of our compressed air treatment and condensate management products

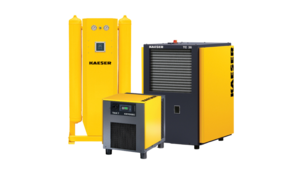

Dryers

Compressed air dryers

Application-specific moisture removal

  • Refrigerated air dyers are available from 10 to 12,500 scfm. Non-cycling, cycling, and dual control dryers provide maximum efficiency by offering the best drying solution for a wide range of applications.
  • Desiccant dryers, available from 7 to 5400 scfm, produce pressure dew points as low as -100°F
  • HYBRITEC compressed air dryers combine the extremely low pressure dew points of desiccant dryers with the energy-saving functionality of modern refrigerated dryers
  • Membrane dryers produce pressure dew points to -40°F and are perfect for small to medium compressed air systems
Quick link

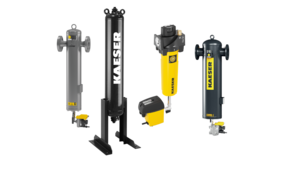

Filtration

Filters and activated carbon adsorbers

Remove contaminants to meet a variety of purity classes

  • Remove dust, oil aerosols and vapors – for pressures up to 232 psig
  • High-pressure filters compatible with Kaeser boosters – for pressures up to 650 psig
  • Activated carbon adsorbers remove oil vapors and odors. They achieve residual oil content to Class 1 as per ISO 8573-1 – for pressures up to 232 and 700 psig
Quick link

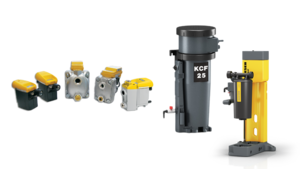

Condensate management

condensate treatment, condensate management, condensate drains, oil-water separators

Efficient disposal of water and contaminants removed by dryers and filters.

  • Condensate drains efficiently eliminate moisture from the compressed air system
  • Kaeser's oil/water separators offer reliable condensate treatment – no energy costs, considerably more cost-effective than external disposal
  • Environmentally friendly
Quick link

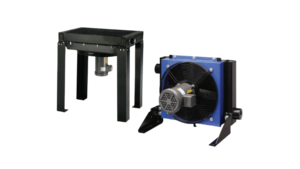

Aftercoolers

Aftercooler/heat exchanger ACA

While all Kaeser rotary screw compressors feature a built-in aftercooler, we offer a complete line of stand-alone air-cooled and water-cooled aftercoolers to complement other compressors and provide additional moisture separation in critical applications.

Quick link
Aftercoolers
