Compact KRYOSEC refrigerated dryers up to 159 scfm

Compact and reliable operation for optimal moisture removal

KRYOSEC compact refrigerated dryers* deliver outstanding performance with "Made in Germany" industrial quality and reliable moisture protection in ambient temperatures up to +122 °F. Lower pressure losses are thanks to the stainless steel heat exchanger system while the easy maintenance design ensures economical operation. Thanks to their compact design, they're always a great fit directly where they're needed – under machine stages, work platforms, or even mounted on the wall (TAH series).

  • Reliably dry compressed air from 12 to 159 scfm
  • Working pressure up to 232 psig
  • Options: ECO-DRAIN electronic condensate drain and/or electronic thermostat for pressure dew point warnings both with floating alarm contacts

Your advantages

  • Reliable moisture protection
    KRYOSEC dryers use a high quality heat exchanger system with stainless steel plates to dry the compressed air. Accumulating condensate is efficiently separated at all operating phases via the integrated separator, while the ECO-DRAIN electronic condensate drain ensures reliable condensate removal without pressure loss.
  • Excellent performance in high ambient temperatures:
    KRYOSEC dryers ensure reliable drying even under the most demanding operating conditions. Along with defined cooling air flow, the generously sized heat exchanger and refrigerant condenser surfaces further help enhance performance.
  • Standard-compliant industrial quality:
    KRYOSEC dryers meet machine safety requirements in accordance with EN 60204-1. Safety features include a lockable ON/OFF switch as well as emergency shut down. High quality manufacturing and compact design make them ideal for use in areas adjacent to production and processing machines that require compressed air treated to high purity classes.

* The refrigerated dryer contains fluorinated R-134a refrigerant. TAH and TBH series with hermetically sealed refrigerant circuit.

The perfect partner: the KCF oil/water separator
KCF condensate filters

Our tip: Take advantage of cost-effective, legally-compliant treatment of condensate before drainage into the regular wastewater system with KCF oil/water separators.



Product details

Equipment

Refrigerant circuit

  • Refrigerant circuit consisting of reciprocating compressor
  • Fan-condenser assembly
  • Filter / dryer
  • Capillary tubes
  • Insulated air/air and air/refrigerant heat exchangers with integrated stainless steel (copper soldered) condensate separators
  • Hot gas bypass controller

Condensate drainage

ECO-DRAIN 30 electronically controlled condensate drain

  • ECO-DRAIN 30 electronically-controlled condensate drain with tap on the condensate inlet, incl. cold surface insulation

Electrical equipment and displays

  • Mechanical dew point trend display
  • Electric equipment to EN 60204-1: lockable main switch with integrated mains isolation device

Enclosure

Compact KRYOSEC refrigeration dryer – low height, wall mountable.

  • Powder-coated unit enclosure with removable hood and machine mounts
  • Prepared for wall mounting (only TAH series)

Connections

  • Design includes strain-relieved main connector cable (without plug)
  • Internally wired
  • Bulkhead pipe fitting for external condensate drain connection

Documentation

  • Includes operating manual and CE marking (EU version)

Optional: "Pressure dew point warning" floating contact

  • Electronic thermostat with floating output terminal
  • Mounted inside the unit, ready for operation
  • Signal can be picked up on-site directly at the output
  • Associated upper and lower switching thresholds configurable

Optional: Condensate drain, incl. floating contact

  • Alternatively equipped with ECO-DRAIN 31 electronic condensate drain with floating alarm contact
  • Signal can be picked up directly on the drain

Design and Function

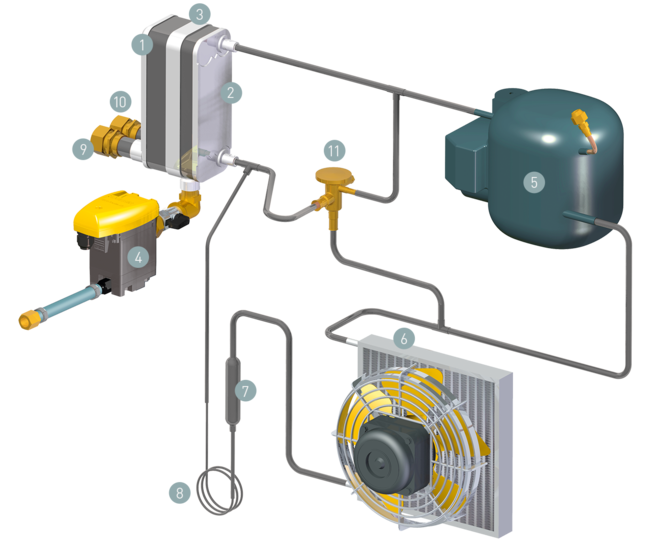

Component layout of TAH and TCH compact refrigeration dryers
  1. Air / air heat exchanger
  2. Air/refrigerant heat exchanger
  3. Condensate separators
  4. Condensate drains
  5. Refrigerant compressor
  6. Refrigerant condenser with fan (air-cooled)
  1. Filter / dryer
  2. Capillary tube (refrigerant evaporation and cooling)
  3. Compressed air inlet
  4. Compressed air outlet
  5. Hot gas bypass controller
Technical specifications TAH

Standard version

ModelTAH 5 TAH 7 TAH 10
Flow rate cfm 12 21 28
Pressure loss psi 0.73 1.89 2.18
Electrical power consumption at 100% vol. hp 0.27 0.27 0.38
Working pressure psi 44 - 232 44 - 232 44 - 232
Ambient temperature Label [Common - Unit °F] is missing 38 - 122 38 - 122 38 - 122
Inlet temperature Label [Common - Unit °F] is missing 140 140 140
RefrigerantR 134a R 134a R 134a
Weight lb 53 53 57
Dimensions W x D x H in 15.2 x 18.6 x 17.3 15.2 x 18.6 x 17.3 15.2 x 18.6 x 17.3
Compressed air connection½ NPT ½ NPT ½ NPT
Condensate drain connection¼ NPT ¼ NPT ¼ NPT
Power supply230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz
Refrigerant mass lb 0.31 0.33 0.46
Refrigerant mass as CO2 equivalent t 0.2 0.2 0.3
hermetic refrigeration circuit

Technical specifications TBH

Standard version

ModelTBH 14 TBH 16 TBH 23
Flow rate cfm 42 57 78
Pressure loss psi 2.61 2.76 3.34
Electrical power consumption at 100% vol. hp 0.47 0.56 0.7
Working pressure psi 44 - 232 44 - 232 44 - 232
Ambient temperature Label [Common - Unit °F] is missing 38 - 122 38 - 122 38 - 122
Inlet temperature Label [Common - Unit °F] is missing 140 140 140
RefrigerantR 134a R 134a R 134a
Weight lb 73 84 101
Dimensions W x D x H in 18.2 x 20.7 x 21.6 18.2 x 20.7 x 21.6 18.2 x 20.7 x 21.6
Compressed air connection½ NPT ½ NPT 1 NPT
Condensate drain connection¼ NPT ¼ NPT ¼ NPT
Power supply230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz
Refrigerant mass lb 0.64 0.9 1.06
Refrigerant mass as CO2 equivalent t 0.4 0.6 0.7
hermetic refrigeration circuit

Technical specifications TCH

Standard version

ModelTCH 27 TCH 33 TCH 36
Flow rate cfm 92 111 124
Pressure loss psi 3.05 3.34 3.63
Electrical power consumption at 100% vol. hp 0.78 1.01 1.41
Working pressure psi 44 - 232 44 - 232 44 - 232
Ambient temperature Label [Common - Unit °F] is missing 38 - 122 38 - 122 38 - 122
Inlet temperature Label [Common - Unit °F] is missing 140 140 140
RefrigerantR 134a R 134a R 134a
Weight lb 123 146 152
Dimensions W x D x H in 25.2 x 26.1 x 24 25.2 x 26.1 x 24 25.2 x 26.1 x 24
Compressed air connection1 NPT 1¼ NPT 1¼ NPT
Condensate drain connection¼ NPT ¼ NPT ¼ NPT
Power supply230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz
Refrigerant mass lb 1.26 1.76 2.09
Refrigerant mass as CO2 equivalent t 0.8 1.1 1.4
hermetic refrigeration circuit - - -

ModelTCH 45
Flow rate cfm 159
Pressure loss psi 3.34
Electrical power consumption at 100% vol. hp 1.73
Working pressure psi 44 - 232
Ambient temperature Label [Common - Unit °F] is missing 38 - 122
Inlet temperature Label [Common - Unit °F] is missing 140
RefrigerantR 134a
Weight lb 165
Dimensions W x D x H in 25.2 x 26.1 x 24
Compressed air connection1¼ NPT
Condensate drain connection¼ NPT
Power supply230 V / 1 Ph / 60 Hz
Refrigerant mass lb 2.38
Refrigerant mass as CO2 equivalent t 1.5
hermetic refrigeration circuit -
