Kaeser Air System Enclosures (224-2646 cfm)


Compressed air system ready for delivery

Kaeser's Air System Enclosures, with flows from 224 to 2646 cfm, are complete compressed air systems delivered ready to operate in a secure, weatherproof enclosure. Each is designed for exceptional reliability, simple maintenance, and superior energy efficiency. They eliminate space, weather, and accessibility constraints and greatly reduce construction and installation time. Kaeser Air System Enclosures are a financially viable alternative to new construction or building renovations, and are built for the most challenging installation environments.

If one of these configurations below doesn't meet your needs, we can design one to your specifications and then build it, deliver it, and commission faster than you can secure a building permit.

Enclosure

Full walk-in design, rated for 110 mph wind loads, 50 lbs/sq. ft. snow load, fully insulated with sound dampening paneling, two entry doors (minimum), removable access panels for major service.

Electrical

External power disconnect, main power distribution panel, step-down transformer, low voltage panel board, EMT conduit, individual isolation devices per equipment requirement, wiring per NEC.

Ventilation

Thermostatically controlled intake and re-circulation dampers, galvanized and insulated duct work, digital temperature controllers, exhaust gravity dampers.

Piping

SmartPipe or equivalent, isolation valves at critical points, external connection point.

Vibration isolation

Vibration isolation on compressor discharge piping; all compressor include machine mounting feet.

Operating conditions

-4°F to +100°F and relative humidity <80%



Available configurations (technical specifications subject to change without notice)

2 compressors with integrated dryers

with ASD compressors

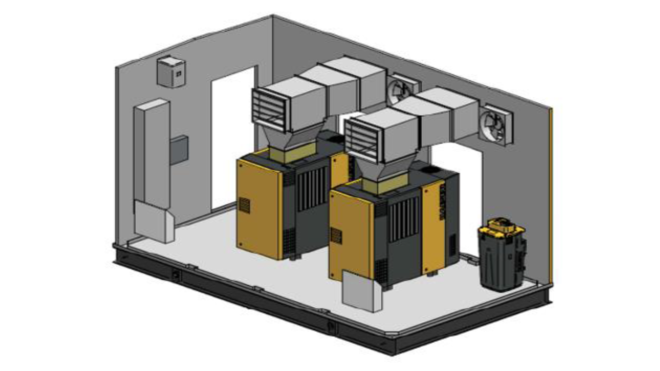

KASE50T.2A

Model KASE 50T.2A KASE 60T.2A KASE 80ST.2A KASE 80T.2A
Compressors 2 ea ASD 25T 2 ea ASD 30T 2 ea ASD 40ST 2 ea ASD 40T
Total Horsepower 50 hp 60 hp 80 hp 80 hp
Total system flow (including backup) 224 acfm 264 acfm 324 acfm 382 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 90 A @ 460V/3ph/60Hz 106 A @ 460V/3ph/60Hz 118 A @ 460V/3ph/60Hz 132 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 18' x 10.4' x 10.6'
Footprint 185.4 sf
Package Weight 15,000 lb

with BSD compressors


Model KASE 80T.2B KASE 100T.2B KASE 120T.2B
Compressors 2 ea BSD 40T 2 ea BSD 50T 2 ea BSD 60T
Total Horsepower 80 hp 100 hp 120 hp
Total system flow (including backup) 386 acfm 472 acfm 576 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 140 A @ 460V/3ph/60Hz 160 A @ 460V/3ph/60Hz 190 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 19' x 11.6' x 10.6'
Footprint 218.5 sf
Package Weight 18,000 lb

with CSD compressors


Model KASE 200T
Compressors 2 ea CSD 145T
Total Horsepower 200 hp
Total system flow (including backup) 1084 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 318 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 30' x 9.6' x 11'
Footprint 285 sf
Package Weight 25,500 lb

with DSD compressors


Model KASE 350T
Compressors 2 ea DSD 175T
Total Horsepower 350 hp
Total system flow (including backup) 1764 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 498.2 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 33' x 11' x 11.8'
Footprint 363 sf
Package Weight 42,500 lb
3 compressors with integrated dryers

with ASD compressors


Model KASE 75T.3A KASE 90T.3A KASE 120ST.3A KASE 120T.3A
Compressors 3 ea ASD 25T 3 ea ASD 30T 3 ea ASD 40ST 3 ea ASD 40T
Total Horsepower 75 hp 90 hp 120 hp 120 hp
Total system flow (including backup) 336 acfm 396 acfm 486 acfm 573 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 123 A @ 460V/3ph/60Hz 147 A @ 460V/3ph/60Hz 165 A @ 460V/3ph/60Hz 186 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 24' x 10.4' x 10.6'
Footprint 247.2sf
Package Weight 20,000 lb

with BSD compressors

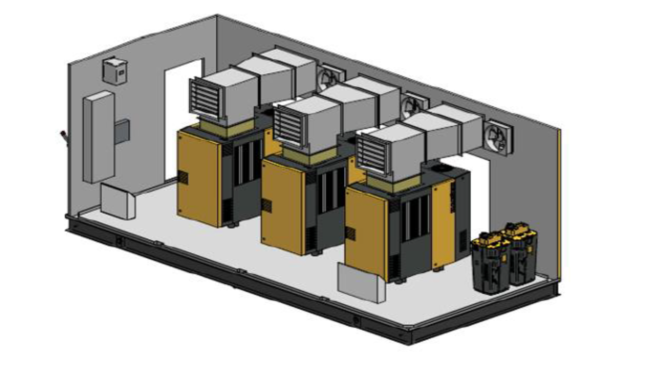

KASE120T.3B

Model KASE 120T.3B KASE 150T.3B KASE 180T.3B
Compressors 3 ea BSD 40T 3 ea BSD 50T 3 ea BSD 60T
Total Horsepower 120 hp 150 hp 180 hp
Total system flow (including backup) 579 acfm 708 acfm 864 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 200.1 A @ 460V/3ph/60Hz 230.1 A @ 460V/3ph/60Hz 275.1 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 26' x 11.6' x 10.6'
Footprint 299 sf
Package Weight 25,000 lb

with CSD compressors


Model KASE 300T
Compressors 3 ea CSD 145T
Total Horsepower 300 hp
Total system flow (including backup) 1626 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 473.4 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 42' x 9.6' x 11.4'
Footprint 399 sf
Package Weight 34,400 lb

with DSD compressors


Model KASE 525T
Compressors 3 ea DSD 175T
Total Horsepower 525 hp
Total system flow (including backup) 2646 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4-5 / 2
Electrical Requirement (Full Load) 737.4 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 46' x 11' x 12'
Footprint 506 sf
Package Weight 52,500 lb
Compressors with SECOTEC refrigerated dryers

CSD compressors and TF dryers


Model KASE 200
Compressors 2 ea CSD 145
Dryers 2 ea TF 280
Total Horsepower 200 hp
Total system flow (including backup) 1084 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4 / 2
Electrical Requirement (Full Load) 321.9 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 30' x 11.6' x 11'
Footprint 345 sf
Package Weight 27,500 lb

DSD compressors and TG dryers

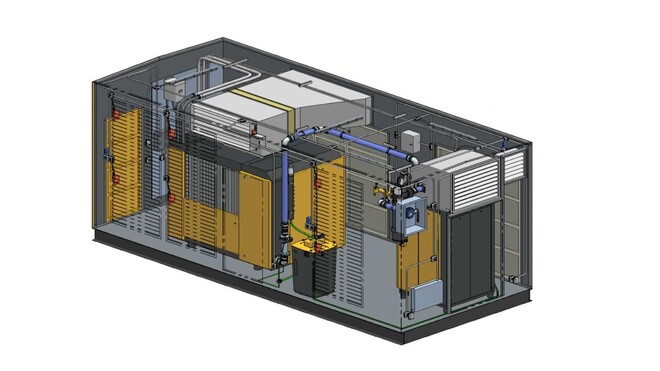

ANCP1DSD3-rendering

Model KASE 250
Compressors 1 ea DSD 250
Dryers 1 ea TG 520
Total Horsepower 250 hp
Total system flow (including backup) 1052 acfm
Max. Pressure 125 psig
ISO Air Quality Level 1 / 4 / 2
Electrical Requirement (Full Load) 311.3 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 26' x 11' x 11'
Footprint 286 sf
Package Weight 24,600 lb
2 compressors with KAD desiccant dryers

with ASD compressors

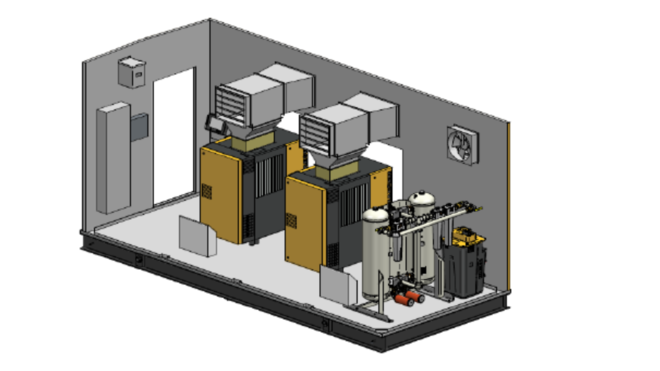

KASE50D.2A

Model KASE 50D.2A KASE 60D.2A KASE 80SD.2A KASE 80D.2A
Compressors 2 ea ASD 25 2 ea ASD 30 2 ea ASD 40S 2 ea ASD 40
Dryers 1 ea KAD 370 w/Eco-Control 1 ea KAD 370 w/Eco-Control 1 ea KAD 450 w/Eco-Control 1 ea KAD 450 w/Eco-Control
Total Horsepower 50 hp 60 hp 80 hp 80 hp
Total system flow (including backup) 165.2 acfm 205.2 acfm 252.4 acfm 310.5 acfm
Max. Pressure 125 psig
ISO Air Quality Level 3 / 2-3 / 2
Electrical Requirement (Full Load) 82 A @ 460V/3ph/60Hz 98 A @ 460V/3ph/60Hz 112 A @ 460V/3ph/60Hz 126 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 21' x 9' x 10.6'
Footprint 189 sf
Package Weight 15,000 lb

with BSD compressors


Model KASE 80D.2B KASE 100D.2B KASE 120D.2B
Compressors 2 ea BSD 40 2 ea BSD 50 2 ea BSD 60
Dryers 1 ea KAD 590 w/Eco-Control 1 ea KAD 590 w/Eco-Control 1 ea KAD 750 w/Eco-Control
Total Horsepower 80 hp 100 hp 120 hp
Total system flow (including backup) 292.2 acfm 378.2 acfm 456.8 acfm
Max. Pressure 125 psig
ISO Air Quality Level 3 / 2-3 / 2
Electrical Requirement (Full Load) 132 A @ 460V/3ph/60Hz 152 A @ 460V/3ph/60Hz 182 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 24' x 10' x 10.6'
Footprint 240 sf
Package Weight 25,000 lb

with CSD compressors


Model KASE 120D.2C KASE 150D.2C KASE 200SD.2C KASE 200D.2C
Compressors 2 ea CSD 90 2 ea CSD 110 2 ea CSD 130 2 ea CSD 145
Dryers 1 ea KAD 750 with Eco-Control 1 ea KAD 930 with Eco-Control 1 ea KAD 1130 with Eco-Control 1 ea KAD 1350 with Eco-Control
Total Horsepower 120 hp 150 hp 200 hp 200 hp
Total system flow (including backup) 480.8 acfm 604.1 acfm 738.3 acfm 869.4 acfm
Max. Pressure 125 psig
ISO Air Quality Level 3 / 2-3 / 2
Electrical Requirement (Full Load) 188 A @ 460V/3ph/60Hz 222 A @ 460V/3ph/60Hz 270 A @ 460V/3ph/60Hz 304 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 25' x 10.6' x 11' 27' x 11.6' x 11.6'
Footprint 262.5 sf 310.5 sf
Package Weight 25,000 lb 30,000 lb
3 compressors with KAD desiccant dryers

with ASD compressors


Model KASE 75D.3A KASE 90D.3A KASE 120SD.3A KASE 120D.3A
Compressors 3 ea ASD 25 3 ea ASD 30 3 ea ASD 40S 3 ea ASD 40
Dryers 1 ea KAD 450 w/Eco-Control 1 ea KAD 590 w/Eco-Control 1 ea KAD 590 w/Eco-Control 1 ea KAD 750 w/Eco-Control
Total Horsepower 75 hp 90 hp 120 hp 120 hp
Total system flow (including backup) 264.5 acfm 302.2 acfm 392.2 acfm 453.8 acfm
Max. Pressure 125 psig
ISO Air Quality Level 3 / 2-3 / 2
Electrical Requirement (Full Load) 113.1 A @ 460V/3ph/60Hz 137.1 A @ 460V/3ph/60Hz 158.1 A @ 460V/3ph/60Hz 179.1 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 28' x 9' x 10.6'
Footprint 252 sf
Package Weight 22,500 lb

with BSD compressors


Model KASE 120D.3B KASE 150D.3B KASE 180D.3B
Compressors 3 ea BSD 40 3 ea BSD 50 3 ea BSD 60
Dryers 1 ea KAD 750 w/Eco-Control 1 ea KAD 930 w/Eco-Control 1 ea KAD 1130 w/Eco-Control
Total Horsepower 120 hp 150 hp 180 hp
Total system flow (including backup) 459.8 acfm 560.1 acfm 684.3 acfm
Max. Pressure 125 psig
ISO Air Quality Level 3 / 2-3 / 2
Electrical Requirement (Full Load) 188.1 A @ 460V/3ph/60Hz 218.1 A @ 460V/3ph/60Hz 263.1 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 31' x 10' x 11'
Footprint 310 sf
Package Weight 30,000 lb

with CSD compressors

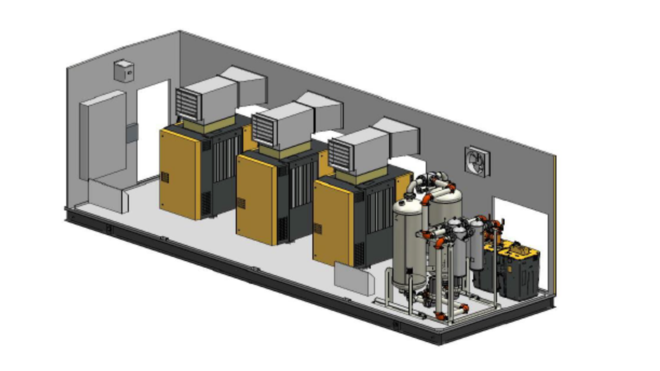

KASE180D.3C

Model KASE 180D.3C KASE 225D.3C KASE 300SD.3C KASE 300D.3C
Compressors 3 ea CSD 90 3 ea CSD 110 3 ea CSD 130 3 ea CSD 145
Dryers 1 ea KAD 1130 with Eco-Control 1 ea KAD 1350 with Eco-Control 1 ea KAD 1550 with Eco-Control 1 ea KAD 2100 with Eco-Control
Total Horsepower 180 hp 225 hp 300 hp 300 hp
Total system flow (including backup) 720.3 acfm 913.4 acfm 1130.6 acfm 1292.1 acfm
Max. Pressure 125 psig
ISO Air Quality Level 3 / 2-3 / 2
Electrical Requirement (Full Load) 274.2 A @ 460V/3ph/60Hz 325.2 A @ 460V/3ph/60Hz 397.2 A @ 460V/3ph/60Hz 446.1 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 34' x 10.6' x 11.6' 36' x 11.6' x 11.6'
Footprint 357 sf 414sf
Package Weight 37,500 lb 42,500 lb
Oil-free with integrated heat of compression dryer

with CSG-2A iHOC compressors

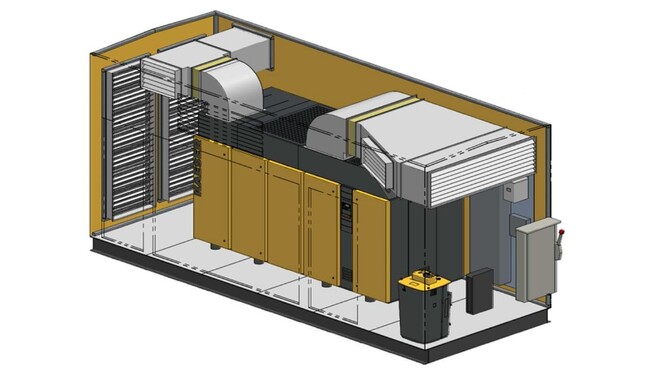

ANCP1CSG3RD-rendering
Model KASE 125DT
Total system flow (including backup) 457 acfm
Max. Pressure 125 psig
ISO Air Quality Level 6 / 2-4 / 1-4
Electrical Requirement (Full Load) 191.4 A @ 460V/3ph/60Hz
Package Dimensions (LxWxH) 20' x 8' x 10.5'
Footprint 160 sf
Package Weight 20,000 lb
