10 HP Rotary Screw Air Compressors

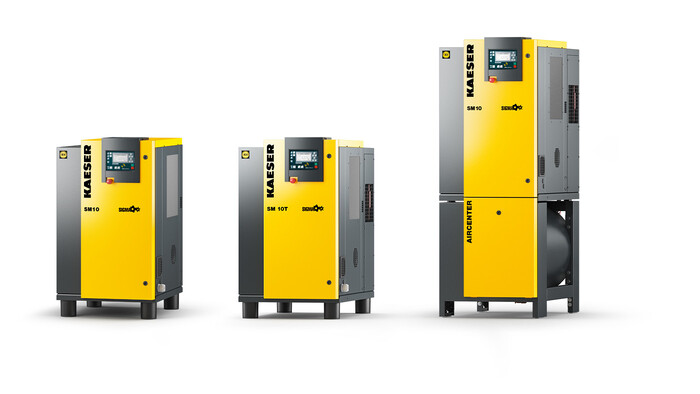

kaeser sm series 10 hp rotary screw air compressor models

Kaeser's 10 HP rotary screw air compressor lineup gives small- to mid-sized industrial operations a proven path to reliable, continuous compressed air without the operating costs of piston-style alternatives. The SM series delivers up to 45.1 CFM at 125 psig, and with configurations spanning standard fixed-speed, variable speed drive, integrated dryer, and complete AIRCENTER packages, there is a 10 HP air compressor setup purpose-built for nearly every facility footprint. Every unit runs on the energy-saving SIGMA PROFILE airend, putting efficiency and diagnostic precision at the core of every system.

Kaeser's 10 HP Screw Compressor Models

Standard 10 HP Air Compressor

SM 10 - 10 hp screw compressor

Kaeser's standard SM 10 hp screw compressor model, offers impressive performance and quiet operation. It features a robust design with super-silenced, vibration-dampening, and powder-coated panels, suitable for ambient temperatures up to +115 °F. The unit is equipped with an IE3 premium efficiency motor (IP 54) and an innovative dual-flow fan with separate airflow channels for efficient cooling of the motor, fluid/compressed air cooler, and control cabinet. Key fluid and airflow features include a 'Honeycomb' air intake filter, pneumatic inlet and venting valves, a triple-separation system in the cooling fluid separator tank, and comprehensive pressure and fluid management components.

10 HP Air Compressor with Integrated Dryer

SM 10T - 10 hp screw compressor with dryer

The SM 10T is a rotary screw compressor with integrated refrigerated dryer sized for the full flow of the compressor. The dryer is located in a separate cabinet so it is not exposed to preheated air or contaminants from the compressor package.

Energy-Saving Control:

The integrated refrigerated dryer in "T” units provides high efficiency performance thanks to its energy saving control. The dryer is active only when compressed air actually needs to be dried. This approach achieves the required compressed air quality with maximum efficiency.

Eco-Drain:

The integrated refrigerated dryer also features a zero loss Eco-Drain. The advanced level-controlled condensate drain eliminates the compressed air losses associated with solenoid valve control. This saves energy and considerably enhances the reliability of the compressed air supply.

Climate-Friendly Design:

In addition to energy-saving controls, our integrated dryers feature the new R-513A refrigerant with 56% lower global warming potential than common dryer refrigerants. Combined with our advanced heat exchanger design, we need only half the refrigerant — resulting in the most climate-friendly dryer possible.



Complete 10HP Compressed Air System

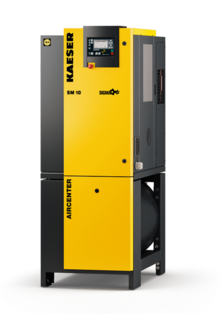

kaeser aircenter 10 hp compressed air system

To simplify your compressed air system, KAESER offers the AIRCENTER. This unit combines essential compressed air system components in one easy-to-install package. AIRCENTERS come completely assembled and include a refrigerated dryer with automatic condensate drain, receiver tank, and an optional filtration package. These super quiet and energy efficient units are compact and perfect for installations where space is limited. Learn about AIRCENTER compressed air packages here. The SM 10 AIRCENTER is also available with variable frequency drive: the AIRCENTER SFC 8.




10HP Rotary Screw Compressor with Variable Speed Drive

SFC 8T - 10 hp screw compressor with variable speed drive and dryer

The SFC 8 10-hp rotary screw compressors is the perfect solution for smaller compressed air systems with varying air demand to achieve significant energy savings while maintaining stable pressure. KAESER SFC units are up to 18% more efficient than the competition. The SFC 8T model has an integrated dryer. Learn more about Kaeser's SFC series of compressors with variable speed drive.

power consumption vs flow rate

A variable speed screw compressor should be the most frequently loaded unit in a properly designed system. Each is optimized to deliver significantly more air with lower kW than comparable compressors.




AIRCENTER DUPLEX

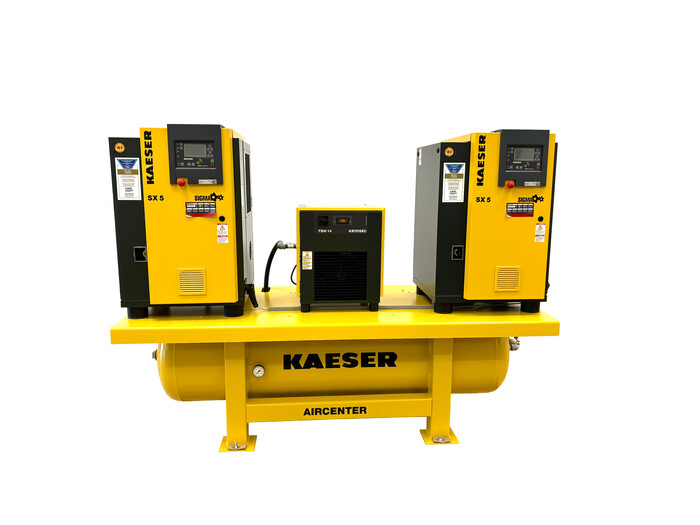

kaeser aircenter duplex 10 hp compressor system with a tank and dryer

The 10-hp AIRCENTER DUPLEX comes in two configurations. Each includes two SX 5-hp rotary screw compressors mounted on a horizontal receiver tank, plus a refrigerated dryer:

  • AIRCENTER DUPLEX SX 5 with KRYOSEC dryer
  • AIRCENTER DUPLEX SX 5 with SECOTEC dryer



TECHNICAL SPECIFICATIONS

10 hp Screw Compressors: SM Series
kaeser sm series 10 hp rotary screw air compressor models
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 160 psig 217 psig
SM 10 45.1 36.9 28.2 25 x 30 x 43 529 67
SM 10T 25 x 43 x 43 695
SM 10 AIRCENTER 25 x 48 x 68 970
  • Super silenced with vibration-dampening
  • All panels powder-coated
  • For ambient temperatures up to +115 °F
  • IE 3 premium efficiency motor
  • IP 54
  • Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
  • Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
  • Pressure relief valve
  • Minimum pressure check valve
  • Thermostatic valve and fluid filter in coolant circuit
  • Fluid / compressed air combination cooler
10 hp Screw Compressors: SFC 8 and SFC  8T

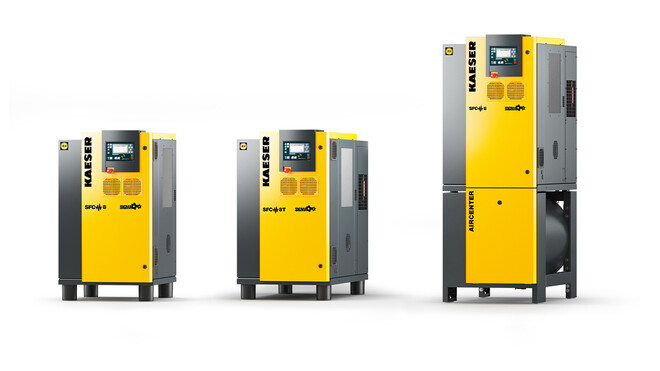

kaeser sfc series 10 hp variable speed drive rotary screw compressor models
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 160 psig 217 psig
SFC 8 13-48* 13-41* 13-32* 25 x 31 x 43 551 68
SFC 8 AIRCENTER 25 x 48 x 68 992
SFC 8T 25 x 43 x 43 717

* Min and max flow range

10 hp Screw Compressors: AIRCENTER DUPLEX
kaeser aircenter duplex 10 hp compressor system with a tank and dryer
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 160 psig 217 psig
SX 5 AIRCENTER DUPLEX (w/KRYOSEC) 42 34 25 85 x 29 x 64 1293 63
SX 5 AIRCENTER DUPLEX (w/SECOTEC) 1373



Why Choose a KAESER 10 HP Rotary Screw Compressor?

Kaeser's 10-hp rotary screw air compressors provide outstanding efficiency and reliability. Featuring an energy-saving SIGMA PROFILE airend and a SIGMA CONTROL 2 controller, these compressors are designed to meet and exceed our customers' expectations, outperforming and outlasting other compressor solutions on the market.

Service-Friendly Compressor Design

From the ground up, these compressors have been designed with the user in mind. Fewer wearing parts and using premium quality materials ensure reduced maintenance requirements, longer service intervals, and extended service life. A smart component layout with generously sized maintenance doors simplifies service and reduces downtime.

Guaranteed Efficiency

In our systems design approach, KAESER chooses the components that work together in the most energy efficient way possible. Each and every component — from inlet filter to discharge connection — has been carefully designed with performance in mind. In fact, the S series are up to 30% more efficient than the competition. With KAESER’s superior system controls, we guarantee an effective system with lower operating costs.

Rugged Reliability

KAESER’s screw compressors meet our rigorous “built for a lifetime” standard. Designed and built with KAESER’s generations of compressed air experience, you can rest assured that these 10 hp compressors will continue to deliver the air you need with the exceptional reliability you expect from a KAESER COMPRESSOR.

SIGMA Control

  • Traffic-light LEDs for at-a-glance operational status
  • Easy-to-read display with 30 selectable languages
  • Soft-touch icon buttons
  • Fully-automatic monitoring and control
  • Dual, Quadro, Vario and Mono control modes available as standard
  • Interfaces: Ethernet
  • Additional optional communication modules for: Profibus DP, Modbus, Profinet, BACnet, OPC
  • SD card slot for data logging and updates
  • RFID reader
  • Web server

Contact KAESER For Your Compressed Air Questions

kaeser compressors experts help customers find the right compressor system

Speak with a Kaeser Compressed Air Engineer to calculate system CFM demands or request a site audit.

Request a Quote!

kaeser compressors experts help customers find the right compressor system

Our compressed air system experts can help you find the right compressed air solution for you.




Frequently Asked Questions

What is the actual pressure dew point achievable with the integrated refrigerated dryer on the SM 10T?

Kaeser's refrigerated dryers in the T series achieve a pressure dew point of approximately 37°F (3°C) under standard operating conditions, within the ISO 8573 Class 4 dew point range. This is adequate for the vast majority of industrial tool and pneumatic equipment applications, including spray painting, automation, and general manufacturing.

Is the AIRCENTER DUPLEX SX 5 a better choice than the SM 10 AIRCENTER for operations that need redundancy?

The AIRCENTER DUPLEX SX 5 pairs two 5 HP rotary screw compressors on a shared horizontal receiver, which gives it a meaningful operational advantage for shops that cannot tolerate downtime: if one unit requires service, the other continues running. The SM 10 AIRCENTER is a single-compressor system, so any maintenance or fault event takes the entire system offline. Both configurations deliver comparable total airflow (the DUPLEX produces up to 42 CFM at 125 psig, versus 45.1 CFM for the SM 10), but the DUPLEX's 63 dB(A) noise level is slightly quieter. Facilities where uptime continuity is a priority and air demand sits near or below 42 CFM should give the DUPLEX configuration serious consideration.
