7.5 HP Rotary Screw Air Compressors

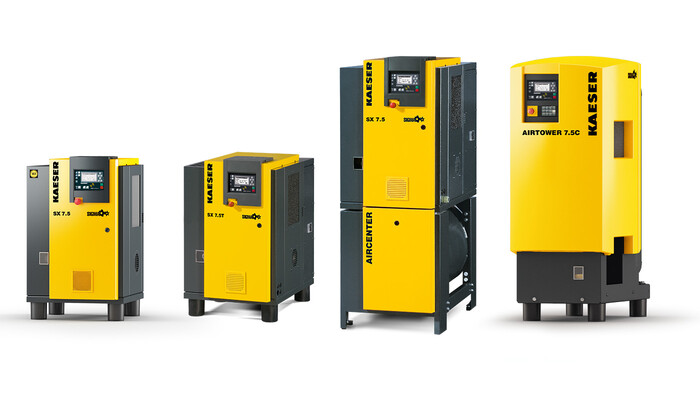

kaeser sx series 7.5 hp rotary screw air compressor models

Kaeser's 7.5 HP Screw Compressor Models

Standard 7.5 HP Air Compressor

Kaeser's standard 7.5 hp screw compressor models in the SX and SM series offer impressive performance and quiet operation. They feature a robust design with super-silenced, vibration-dampening, and powder-coated panels, suitable for ambient temperatures up to +115 °F. The units are equipped with an IE3 premium efficiency motor (IP 54) and an innovative dual-flow fan with separate airflow channels for efficient cooling of the motor, fluid/compressed air cooler, and control cabinet. Key fluid and airflow features include a 'Honeycomb' air intake filter, pneumatic inlet and venting valves, a triple-separation system in the cooling fluid separator tank, and comprehensive pressure and fluid management components.

7.5 HP Air Compressors with Integrated Dryers

SX7.5T - 7.5 hp screw compressor with dryer

The SX 7.5T and SM 7.5T are rotary screw compressors with integrated refrigerated dryers sized for the full flow of the compressor. The dryer is located in a separate cabinet so it is not exposed to preheated air or contaminants from the compressor package.

Energy-Saving Control:

The integrated refrigerated dryer in "T” units provides high efficiency performance thanks to its energy saving control. The dryer is active only when compressed air actually needs to be dried. This approach achieves the required compressed air quality with maximum efficiency.

Eco-Drain:

The integrated refrigerated dryer also features a zero loss Eco-Drain. The advanced level-controlled condensate drain eliminates the compressed air losses associated with solenoid valve control. This saves energy and considerably enhances the reliability of the compressed air supply.

Climate-Friendly Design:

In addition to energy-saving controls, our integrated dryers feature the new R-513A refrigerant with 56% lower global warming potential than common dryer refrigerants. Combined with our advanced heat exchanger design, we need only half the refrigerant — resulting in the most climate-friendly dryer possible.

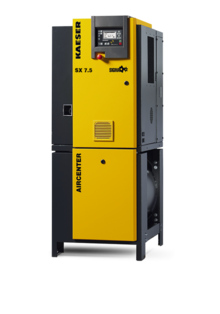

7.5 HP AIRCENTER: Complete 7.5HP Compressed Air Systems

kaeser aircenter 7.5 hp compressed air system

To simplify your compressed air system, KAESER offers the AIRCENTER. This unit combines essential compressed air system components in one easy-to-install package. AIRCENTERS come completely assembled and include a refrigerated dryer with automatic condensate drain, receiver tank, and an optional filtration package. These super quiet and energy efficient units are compact and perfect for installations where space is limited. Learn about AIRCENTER compressed air packages here.

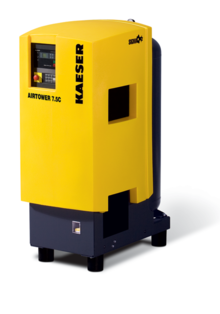

AIRTOWER 7.5C: A Compact Footprint 7.5HP Compressed Air Package

kaeser airtower compact 7.5 hp air compressor system package

The AIRTOWER™ is an affordable, yet rugged rotary screw compressor package for any light industrial application including woodworking, machine shops, metal fabrication, and all sorts of vehicle maintenance and repair. Available in 3, 4, 5, and 7.5 hp, the AIRTOWER delivers reliability, energy efficiency, and easy maintenance. The all-in-one package includes a rotary screw compressor, dryer, tank, and drain in a compact, space-saving design that arrives fully assembled and ready to run. Learn more about AIRTOWER compressed air packages here.

TECHNICAL SPECIFICATIONS

7.5 hp Screw Compressors: SX Series

Model	Flow			Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
Model	125 psig	160 psig	217 psig	Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
SX 7.5	28.3	23.7	18.7	23 x 25 x 38	342	66
SX 7.5T				23 x 36 x 38	441
SX 7.5 AIRCENTER				23 x 43 x 61	661

Super silenced with vibration-dampening
All panels powder-coated
For ambient temperatures up to +115 °F
IE 3 premium efficiency motor
IP 54
Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
Pressure relief valve
Minimum pressure check valve
Thermostatic valve and fluid filter in coolant circuit
Fluid / compressed air combination cooler

7.5 hp Screw Compressors: AIRTOWER

Model	Flow			Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
Model	125 psig	160 psig	217 psig	Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
AIRTOWER 7.5C	28.3			24 x 39 x 58	661	70

Super silenced with vibration-dampening
All panels powder-coated
For ambient temperatures up to +115 °F
IE 3 premium efficiency motor
IP 54
Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
Pressure relief valve
Minimum pressure check valve
Thermostatic valve and fluid filter in coolant circuit
Fluid / compressed air combination cooler

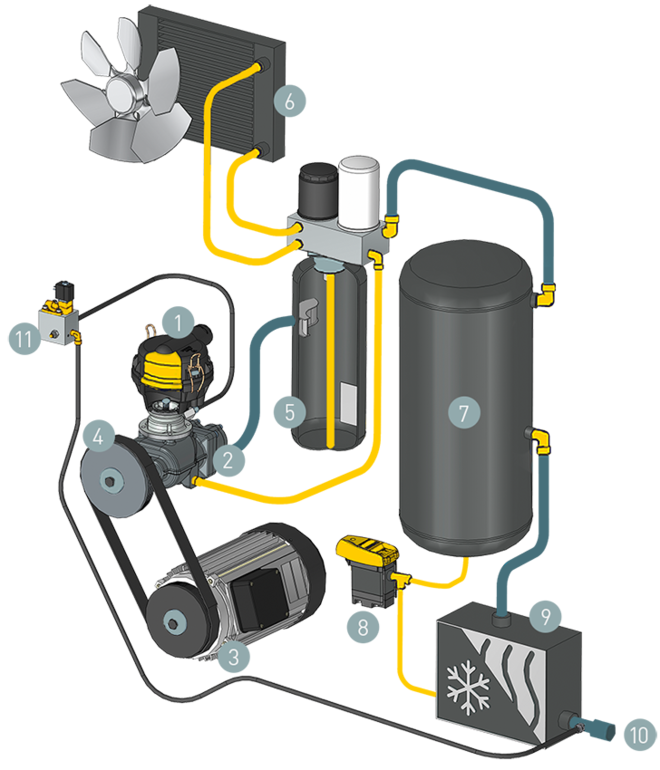

AIRTOWER Components

Air filter
Airend
Drive motor
Automatic belt tensioning
Fluid separator tank
Cooler
Air receiver
ECO DRAIN condensate drain
Refrigerated dryer
Compressed air outlet
Control valve

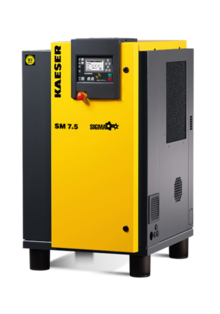

7.5 hp Screw Compressors: SM Series

kaeser sm series 7.5 hp rotary screw air compressors models

Model	Flow			Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
Model	125 psig	160 psig	217 psig	Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
SM 7.5	32.2	25.9	19.3	25 x 30 x 43	485	65
SM 7.5T				25 x 43 x 43	650
SM 7.5 AIRCENTER				25 x 48 x 68	926

Super silenced with vibration-dampening
All panels powder-coated
For ambient temperatures up to +115 °F
IE 3 premium efficiency motor
IP 54
Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
Pressure relief valve
Minimum pressure check valve
Thermostatic valve and fluid filter in coolant circuit
Fluid / compressed air combination cooler

Why Choose a KAESER 7.5 HP Rotary Screw Compressor?

Kaeser's 7.5-hp rotary screw air compressors provide outstanding efficiency and reliability. Featuring an energy-saving SIGMA PROFILE airend and a SIGMA CONTROL 2 controller, these compressors are designed to meet and exceed our customers' expectations, outperforming and outlasting other compressor solutions on the market.

Service-Friendly Compressor Design

From the ground up, these compressors have been designed with the user in mind. Fewer wearing parts and using premium quality materials ensure reduced maintenance requirements, longer service intervals, and extended service life. A smart component layout with generously sized maintenance doors simplifies service and reduces downtime.

Guaranteed Efficiency

In our systems design approach, KAESER chooses the components that work together in the most energy efficient way possible. Each and every component — from inlet filter to discharge connection — has been carefully designed with performance in mind. In fact, the S series are up to 30% more efficient than the competition. With KAESER’s superior system controls, we guarantee an effective system with lower operating costs.

Rugged Reliability

KAESER’s screw compressors meet our rigorous “built for a lifetime” standard. Designed and built with KAESER’s generations of compressed air experience, you can rest assured that these 7.5 hp compressors will continue to deliver the air you need with the exceptional reliability you expect from a KAESER COMPRESSOR.

SIGMA Control 2: An Intelligent Compressor Control System

Traffic-light LEDs for at-a-glance operational status
Easy-to-read display with 30 selectable languages
Soft-touch icon buttons
Fully-automatic monitoring and control
Dual, Quadro, Vario and Mono control modes available as standard
Interfaces: Ethernet
Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
SD card slot for data logging and updates
RFID reader
Web server
