175 HP Industrial Rotary Screw Compressors

175 hp screw compressors - DSD 175

Kaeser's 175 HP Screw Compressor Models




Standard 175 HP Air Compressor

DSD 175 - 175 hp screw compressor

Kaeser's 175 hp rotary screw compressors in the DSD series with direct drive incorporate all standard Kaeser features, such as powder-coated enclosures, premium efficiency TEFC motors, and the SIGMA PROFILE airend. These units are available with integrated dryers and/or variable speed drive options.

175 HP Air Compressors with Integrated Dryers

DSD 175T - 175 hp screw compressor with dryer

The DSD 175T is a rotary screw compressor with integrated refrigerated dryers sized for the full flow of the compressor. The dryer is located in a separate cabinet so it is not exposed to preheated air or contaminants from the compressor package.

Energy-Saving Control:

The integrated refrigerated dryer in "T” units provides high efficiency performance thanks to its energy saving control. The dryer is active only when compressed air actually needs to be dried. This approach achieves the required compressed air quality with maximum efficiency.

Eco-Drain:

The integrated refrigerated dryer also features a zero loss Eco-Drain. The advanced level-controlled condensate drain eliminates the compressed air losses associated with solenoid valve control. This saves energy and considerably enhances the reliability of the compressed air supply.

Climate-Friendly Design:

In addition to energy-saving controls, our integrated dryers feature the new R-513A refrigerant with 56% lower global warming potential than common dryer refrigerants. Combined with our advanced heat exchanger design, we need only half the refrigerant — resulting in the most climate-friendly dryer possible.

175HP Rotary Screw Compressor with Variable Speed Drive

SFC 132S - 175 hp screw compressor with variable speed drive

The SFC 132S 175 hp rotary screw compressors with variable speed drive are the perfect solution for compressed air systems with varying air demand to achieve significant energy savings while maintaining stable pressure. KAESER SFC units are up to 25% more efficient than the competition. These units are available with an integrated dryer. Learn more about Kaeser's SFC series of compressors with variable speed drive.




TECHNICAL SPECIFICATIONS


175 hp Screw Compressors: DSD Series

Direct-Drive Units

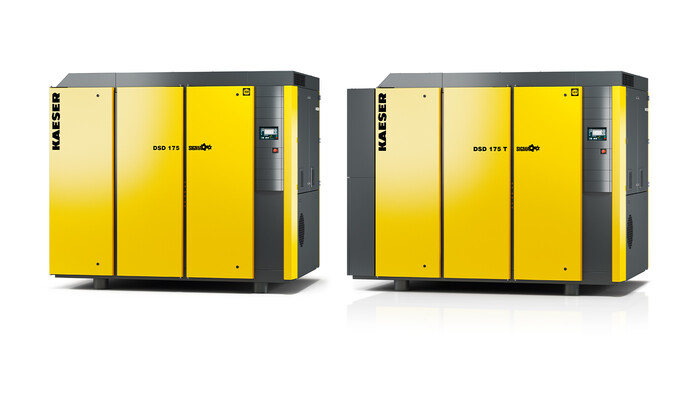

175 hp screw compressors - DSD 175
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 175 psig 217 psig
DSD 175 909 696 558 97 x 68 x 85 7562 75
DSD 175T 108 x 68 x 85 8157

  • Super soundproofing
  • Vibration dampening
  • Powder-coated panels
  • For ambient temperatures up to +115°F
  • Service-friendly design: External lubrication for fan motor and drive motor bearings
  • Easy access to all service points
  • Single stage with cooling fluid injection for optimal rotor cooling
  • Genuine Kaeser rotary screw airend with energy-saving SIGMA profile
  • 1:1 Direct drive
  • Directly coupled without gears
  • High-flex, maintenance-free coupling
  • IE4 super premium efficiency motor
  • IP 55 Totally enclosed fan-cooled motor (TEFC)
  • Class F insulation for greater power reserve
  • Pt100 winding temperature transducer for motor monitoring
  • External bearing lubrication
  • Dry air intake filter with pre-filtration
  • Inlet silencer
  • Pneumatic inlet and venting valves
  • Cooling fluid separator tank with three-stage separation system
  • Safety relief valve
  • Minimum pressure check valve
  • ETM electronic thermal management and eco fluid filter in coolant circuit
  • Air-cooled fluid and compressed air aftercooler (air-cooled as standard)
  • Two fan motors, one variable speed
  • Centrifugal separator with electronically-controlled condensate drain for energy savings without pressure loss
  • Piping and centrifugal separator made of stainless steel
  • Water-cooled option: Fluid and compressed air aftercooler with plate-type heat exchanger. Shell and tube heat exchanger available as an option.
  • All fully piped
  • Flexible couplings
  • Separate aluminum coolers for compressed air and fluid
  • Optionally available with integrated fluid/water plate-type heat exchanger and additional fluid thermostatic valve
  • External connections
175 hp Screw Compressors: SFC Series

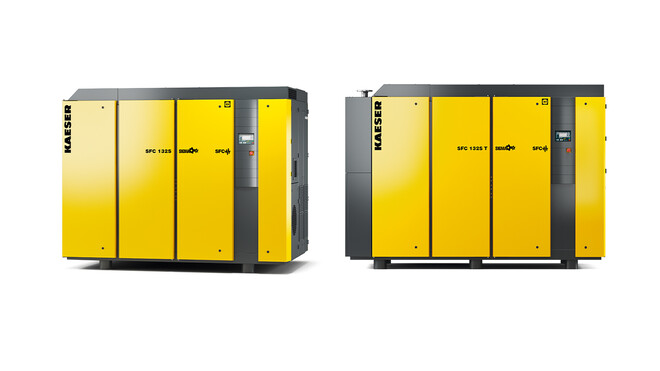

175 hp screw compressors with variable speed drive - SFC 132S
Model Flow (cfm) Dimensions W x D x H (in) Weight (lb) Noise level (dB(A))
125 psig 175 psig 217 psig
SFC 132S 198-885* 179-691* 170-584* 106 x 68 x 85 8091 75
SFC 132ST 118 x 68 x 85 8708

* Min and max flow range

Why Choose a KAESER 175 HP Rotary Screw Compressor?

Kaeser's 175-hp rotary screw air compressors provide outstanding efficiency and reliability. Featuring an energy-saving SIGMA PROFILE airend and a SIGMA CONTROL 2 controller, these compressors are designed to meet and exceed our customers' expectations, outperforming and outlasting other compressor solutions on the market.

Service-Friendly Compressor Design

Kaeser Compressors designs rotary screw compressors with the user in mind. Fewer wearing materials and using premium quality materials ensure reduced maintenance requirements, longer service intervals, and extended service life. Our DSD rotary screw compressors feature an open package layout. All of the major components are easily accessible, reducing preventive maintenance time by as much as 50% when compared to other similarly sized screw compressor units. Lockable panels provide easy access to all maintenance items. Electrical components are housed in a spacious, ventilated control cabinet. Wiring is neatly arranged and terminals are clearly identified. When you consider the maintenance costs savings, it’s clear that owning a Built for a lifetime™ Kaeser compressor will save you money, year after year.

Guaranteed Efficiency

At KAESER our rotary screw compressors are designed with maximum efficiency in mind. Every component in a Kaeser rotary screw air compressor system is carefully designed with performance in mind. Unique components such as our patent-pending double-flow cooling fan increases air flow while reducing overall power requirements and the proprietary Sigma Profile airend is optimized for low airend speeds required from 175hp compressors. In fact, our DSD series 175 horsepower compressors are up to 30% more efficient than the competition guaranteeing lower operating costs regardless of your compressed air application.

Rugged Reliability

Kaeser’s screw compressors meet our rigorous “built for a lifetime” standard. Designed and built with Kaeser’s generations of compressed air experience, you can rest assured that these compressors will continue to deliver the air you need with the exceptional reliability you expect from a Kaeser compressor. Our 175 hp rotary screw compressors are equipped with high efficiency coolers ensuring reliable compressor operation in any environment. Filter mats simplify maintenance needs by capturing particle build up on the outside of the filter where it is easily seen and removed. This reduces the frequency of cooler servicing needs and ensures your compressor can operate in dust and dirt heavy environments. Due to their enclosure system, Kaeser’s totally enclosed, fan cooled (TEFC) motors used in our 175 HP air compressors are also less susceptible to dirt and dust than commonly used open drip proof (ODP) motors.

SIGMA Control 2: An Intelligent Compressor Control System

SIGMA CONTROL 2 compressor controller
  • Traffic-light LEDs for at-a-glance operational status
  • Easy-to-read display with 30 selectable languages
  • Soft-touch icon buttons
  • Fully-automatic monitoring and control
  • Dual, Quadro, Vario and Mono control modes available as standard
  • Interfaces: Ethernet
  • Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
  • SD card slot for data logging and updates
  • RFID reader
  • Web server
