50 HP Rotary Screw Air Compressors

Kaeser's 50 HP Screw Compressor Models

Standard 50 HP Air Compressor

Kaeser's 50 hp rotary screw compressors with direct drive incorporate all standard Kaeser features, such as powder-coated enclosures, premium efficiency TEFC motors, and the SIGMA PROFILE airend. These units are available with integrated dryers and/or variable speed drive options.

50 HP Air Compressors with Integrated Dryers

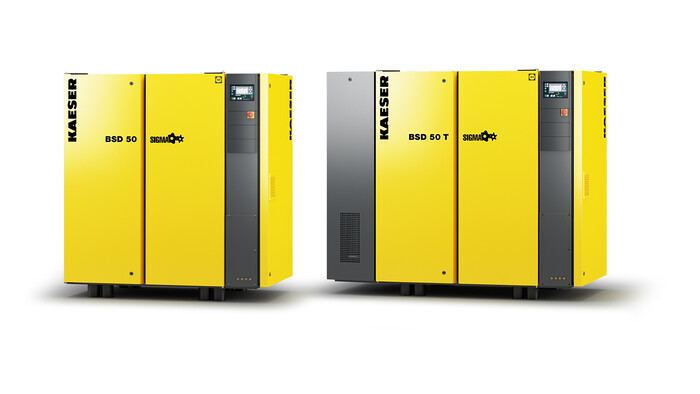

BSD 50T - 50 hp screw compressor with dryer

The BSD 50T is a rotary screw compressor with integrated refrigerated dryer sized for the full flow of the compressor. The dryer is located in a separate cabinet so it is not exposed to preheated air or contaminants from the compressor package.

Energy-Saving Control:

The integrated refrigerated dryer in "T” units provides high efficiency performance thanks to its energy saving control. The dryer is active only when compressed air actually needs to be dried. This approach achieves the required compressed air quality with maximum efficiency.

Eco-Drain:

The integrated refrigerated dryer also features a zero loss Eco-Drain. The advanced level-controlled condensate drain eliminates the compressed air losses associated with solenoid valve control. This saves energy and considerably enhances the reliability of the compressed air supply.

Climate-Friendly Design:

In addition to energy-saving controls, our integrated dryers feature the new R-513A refrigerant with 56% lower global warming potential than common dryer refrigerants. Combined with our advanced heat exchanger design, we need only half the refrigerant — resulting in the most climate-friendly dryer possible.

50HP Rotary Screw Compressor with Variable Speed Drive

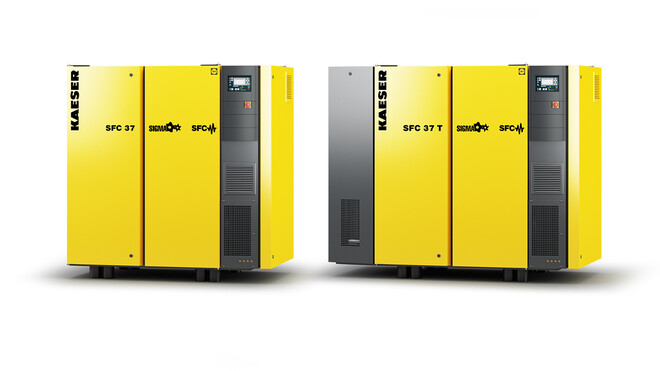

SFC 37 - 50 hp screw compressor with variable speed drive

The SFC 37 50hp rotary screw compressor is the perfect solution for smaller compressed air systems with varying air demand to achieve significant energy savings while maintaining stable pressure. KAESER SFC units are up to 25% more efficient than the competition. These units are available with an integrated dryer. Learn more about Kaeser's SFC series of compressors with variable speed drive.

A variable speed screw compressor should be the most frequently loaded unit in a properly designed system. Each is optimized to deliver significantly more air with lower kW than comparable compressors.

TECHNICAL SPECIFICATIONS

50 hp Screw Compressors: BSD Series

Direct-Drive Units

Model	Flow (cfm)			Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
Model	125 psig	175 psig	217 psig	Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
BSD 50	237	192	157	63 x 41 x 67	2172	72
BSD 50T	237	192	157	78 x 41 x 67	2458	72

Generously sized doors fully swing out or are easily removable
SIGMA CONTROL 2 signals when PM is due
Easy access inlet filter requires no special tools for servicing
Eco-friendly fluid filter element safe for thermal disposal
External drive motor grease fittings
Double vibration isolation ensures wiring and fluid connections stay tight
Coolers are easily cleaned
Fluid fill port conveniently placed
Fluid level easy to check
Separator design allows fast, complete fluid changes

50 hp Screw Compressors: SFC Series

50 hp compressors with variable speed drive - SFC 37-SFC 37T

Model	Flow (cfm)			Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
Model	125 psig	175 psig	217 psig	Dimensions W x D x H (in)	Weight (lb)	Noise level (dB(A))
SFC 37	54-248*	42-201*	40-178*	66 x 41 x 67	2249	74
SFC 37T	54-248*	42-201*	40-178*	81 x 41 x 67	2535	74

* Min and max flow range

Why Choose a KAESER 50 HP Rotary Screw Compressor?

Kaeser's 50-hp rotary screw air compressors provide outstanding efficiency and reliability. Featuring an energy-saving SIGMA PROFILE airend and a SIGMA CONTROL 2 controller, these compressors are designed to meet and exceed our customers' expectations, outperforming and outlasting other compressor solutions on the market.

Service-Friendly Compressor Design

From the ground up, these compressors have been designed with the user in mind. Fewer wearing parts and using premium quality materials ensure reduced maintenance requirements, longer service intervals, and extended service life. A smarter component layout with generously sized maintenance doors simplify service and lower your operating costs.

Guaranteed Efficiency

In our comprehensive design approach, KAESER chooses the components that work together in the most energy efficient way possible. Each and every component—from inlet filter to discharge flange—has been carefully selected with performance in mind. In fact, the BSD series are more efficient than the competition. With KAESER’s superior integrated controls, we guarantee an efficient system with lower operating costs, however small or large your demand may be.

Rugged Reliability

KAESER’s screw compressors meet our rigorous “built for a lifetime” standard. Designed and built with KAESER’s generations of compressed air experience, you can rest assured that these 50 hp compressors will continue to deliver the air you need with the exceptional reliability you expect from a KAESER compressor.

SIGMA Control 2: An Intelligent Compressor Control System

Traffic-light LEDs for at-a-glance operational status
Easy-to-read display with 30 selectable languages
Soft-touch icon buttons
Fully-automatic monitoring and control
Dual, Quadro, Vario and Mono control modes available as standard
Interfaces: Ethernet
Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
SD card slot for data logging and updates
RFID reader
Web server
