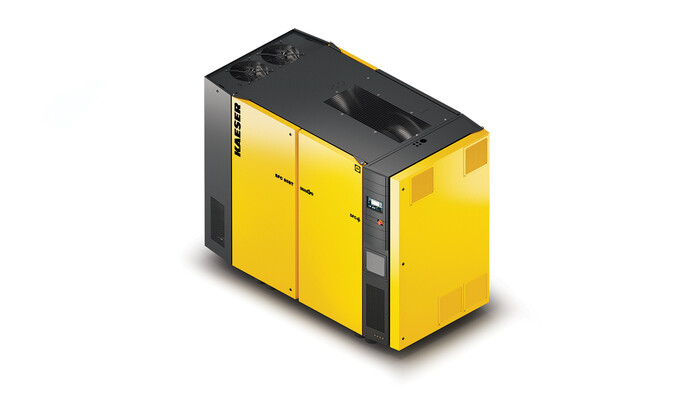

SFC 90ST compressor with variable frequency drive and integrated dryer and a new synchronous reluctance motor
Kaeser has redesigned its Sigma Frequency Control (SFC) SFC 45, 55, 75S, 90S and 110S (60-125 hp) compressors with advanced SynRM motor-drive combinations for better part-load efficiency, longer service life, and reduced maintenance costs.
Developed in partnership with Siemens and specifically designed to work with Kaeser’s Sigma Frequency Control (SFC) models, the SynRM motor-drive combination achieves top tier IES2 classification. This results in better specific performance, especially in the part-load conditions that call for variable speed compressors.
They do not use aluminum, copper, or expensive rare earth metals in the rotors. Instead, they are made of electrical steel and feature a special profile. With this unique rotor design, the motors run cooler -- resulting in lower bearing and winding temperatures and increased motor life. And because there are no magnets in the rotor, motor service is safer and easier.
To further enhance overall sustainability, SFC T models with the optional integrated refrigerated dryers have been upgraded with R-513A, a non-flammable, non-toxic advanced formulation refrigerant. R-513A has 56% lower global warming potential (GWP) compared to the current US standard (R-134a). This, combined with Kaeser’s advanced heat exchanger design, reduces refrigerant requirements without compromising dryer performance.
For more information, visit us.kaeser.com/SFC or call (877) 417-3527 to be connected with your local authorized Kaeser representative.
05/28/19 , Free for publication, copy appreciated to firstname.lastname@example.org.
