In manufacturing and process industries, oxygen and moisture can create oxidation that causes product degradation, equipment malfunction, and even combustion hazards. Nitrogen purging is often applied to solve this challenge by replacing oxygen and other reactive gases inside vessels, pipelines, and equipment with an inert atmosphere using industrial nitrogen.
Frequently Asked Questions About Nitrogen Purging
What is nitrogen purging and how does it work?
Nitrogen purging is the process of displacing oxygen, moisture, or harmful vapors using dry nitrogen gas. Because nitrogen is chemically inert and non-reactive under standard operating conditions, maintaining a nitrogen blanket eliminates ignition hazards and prevents product oxidation or degradation from toxic, caustic or corrosive vapors.
What are common industrial applications for nitrogen purging?
Nitrogen purging is used across a wide range of applications. Here are just some of them:
- Chemical & Refining: Displacing flammable vapors from pipelines, tanks, and reactors prior to maintenance or product changeovers.
- Electronics Manufacturing: Creating oxygen-free environments to prevent oxidation during semiconductor fabrication and wave soldering.
- Food & Beverage Packaging: Displacing ambient air to extend shelf life and preserve product freshness during storage.
- Pharmaceutical Processing and Packaging: Protecting sensitive active ingredients from moisture and oxidative degradation.
- Metal Additive Manufacturing (3D Printing): Preventing oxidation, degradation of metal powder, or dust combustion in the build chamber.
- Metal Casting: Degassing aluminum castings, preventing re-oxidation that may cause slag or dross, and increasing steel strength.
What are the core operational benefits of purging with nitrogen?
- Quality Control: Prevents corrosion, spoilage, and chemical degradation caused by ambient moisture and oxygen exposure.
- Equipment Protection: Keeps internal piping and reaction vessels free of rust and moisture buildup over prolonged operational cycles.
- Enhanced Safety: Eliminates the fuel-oxygen-ignition triangle by keeping oxygen levels safely below lower explosive limits (LEL).
What are some best practices for executing an effective purge?
- Select the Correct Purge Method: Choose between displacement purging (sweeping low-density air out with high-density gas) and pressure-swing purging (pressurizing and venting iteratively) depending on the internal shape and volume of the system being purged.
- Monitor Atmosphere Continuously: Use calibrated oxygen analyzers to test the atmosphere before operating purged system.
- Prevent Excessive Pressure: Use dedicated pressure regulators and safety relief valves to prevent vessel/system over-pressurization.
How does on-site nitrogen generation compare to bulk cylinders or liquid dewars?
Industrial purging may require significant gas volumes. Depending on the volume and frequency of need, you have options for nitrogen supply. High-pressure cylinders or liquid dewar deliveries may be cost effective for intermittent or low volume needs but may require contracts with minimum service periods. These services are becoming increasingly expensive due to rising energy surcharges, as well as logistics and hazmat fees. Further, they involve handling heavy cylinders which adds a safety aspect in your plant. Alternatively, producing nitrogen on site can lower costs significantly, but it does require a capital investment in the nitrogen generator (and possibly compressed air equipment) and the space to install it.

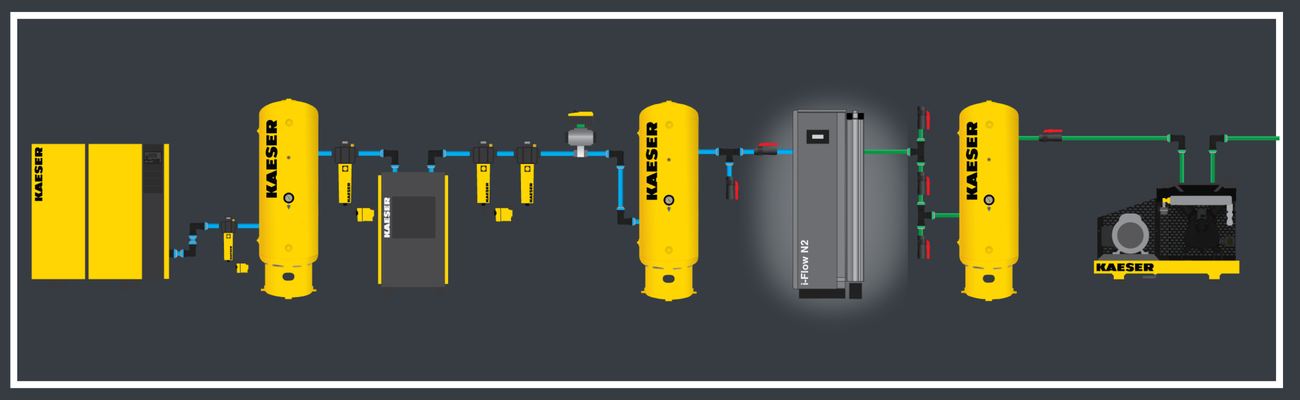

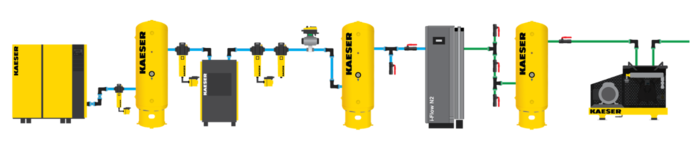

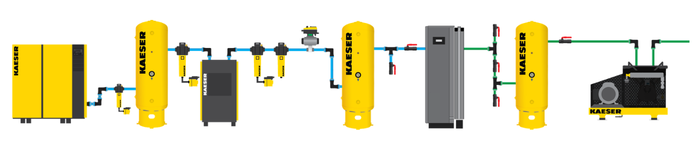

Generating nitrogen on-site using an existing compressed air infrastructure provides:
- Lower Operating Costs: Eliminates delivery fees, cylinder rentals, and supplier price fluctuations.
- Streamlined Site Safety: Removes the burden of moving and swapping heavy, high-pressure cylinders on the plant floor.
- Uninterrupted Supply: Guarantees gas availability on demand whenever purging or maintenance routines are required.
Putting the safety and supply risk factors aside, assessing whether on-site generation or nitrogen delivery contracts are better for you is a relatively easy comparison of the service contract costs vs the installation, maintenance and ongoing energy costs of an on-site system. The key starting point is knowing what your nitrogen volume and purity needs are.
